CF-101
Ren Thang Machine
CF-101
Taped Radial Lead Trimmer (Motor Driven)
帶式電容裁斷機 (電動馬達型)
The CF-101 features a quiet AC motor with stepless speed regulation, achieving automated throughput up to 60,000 pcs/hour for taped radial components from reels or ammo boxes. Delivering burr-free, microscopic length consistency, it supports both standard 12.7 mm and specialized 15.0 mm tape pitch standards.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 60,000 pcs / Hour
Power / Air Supply 電壓: 110V/60Hz ; 220V/50Hz (AC 馬達無段變速)
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 520(L) x 380(W) x 300(H) mm
Net Weight 淨重: 24 kgs
Catalog Page & Status
P.4 (Catalog_0004) • 馬達無段變速；標準紙帶孔距 A=12.7mm (CF-101)，特殊紙帶孔距 A=15mm (CF-101S)。
【Key Machine Features & Advantages】
- Motorized Stepless Speed Control: Whisper-quiet AC motor drive with stepless speed regulation achieves ultra-high throughput up to 60,000 pcs/hour.
- Heavy-Duty Production Architecture: Shares identical cutting mechanics and tooling with HCF-101, engineered for 24/7 high-volume automated production.
- Dedicated Radial Tape Lead Cutter: Precision trims single-sided taped radial components including capacitors, resistors, LEDs, and crystals.
- Universal Tape Infeed: Smoothly handles continuous taped components fed from either reels or ammo pack boxes.
- Optional Component Counter: Digital optical batch/total counter available upon request; please specify when ordering.
- Compact High-Precision Trimming: Ensures burr-free, uniform lead cut lengths within tight tolerances for automated PCB insertion.
- Tape Pitch Variants: Standard CF-101 for 12.7 mm sprocket hole pitch; specialized model CF-101S for 15.0 mm sprocket hole pitch.
【Revision Notes】 刀片可重複精磨，磨刀成本低。
Lead Forming & Geometric Parameter Specifications

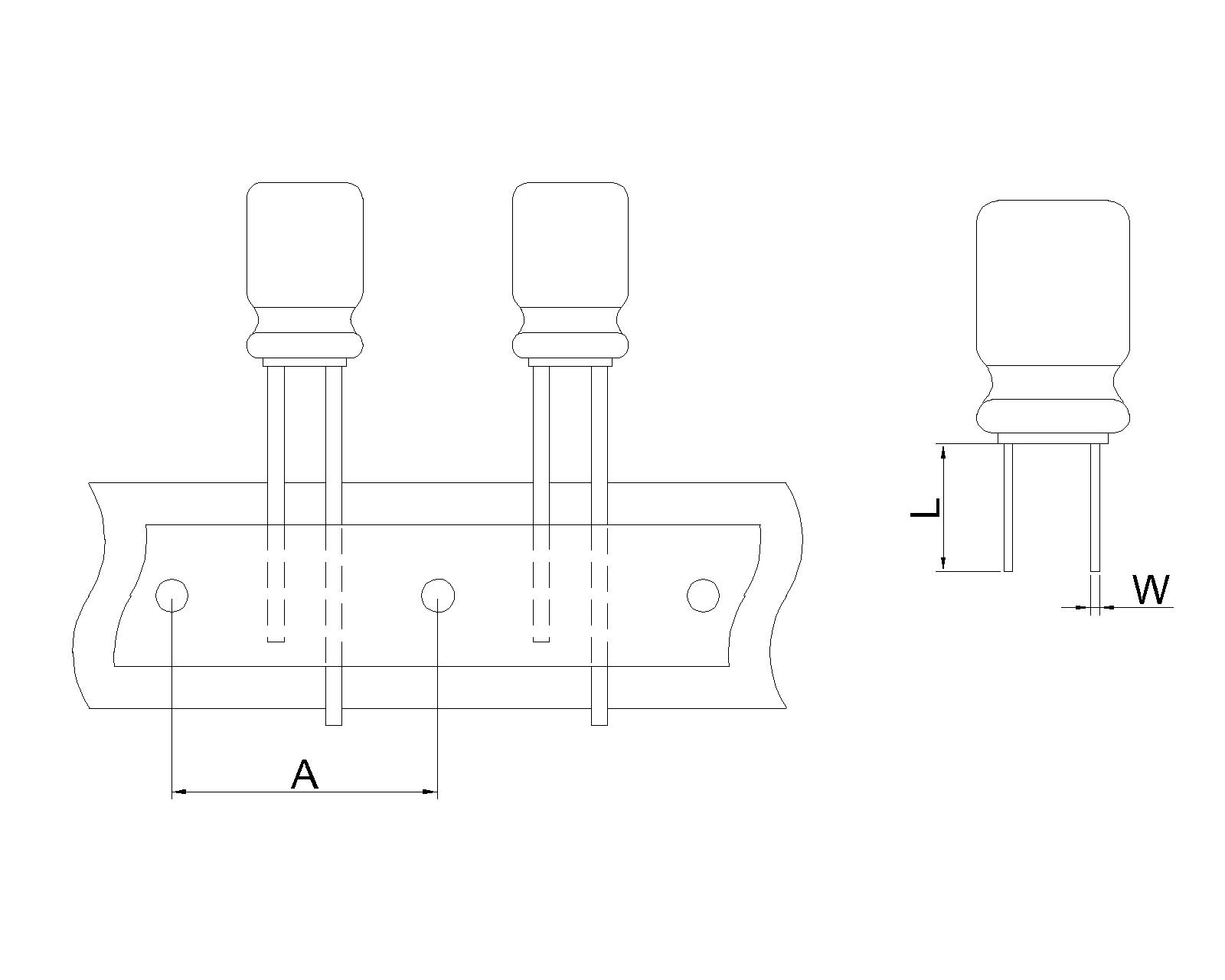

Unit: mm / Custom tooling available Dimension & Bending Schematic CF-101
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A | Tape Hole Pitch (A) | 標準 A=12.7mm (CF-101) / 特殊 A=15mm (CF-101S) | Applicable to standard tape-mounted parts |
| W | Lead Wire Diameter (W) | Ø0.4 ~ Ø1.0 mm | Compatible lead wire diameter |
| L | Total Lead Length (L) | 3.0 ~ 20.0 mm | Total lead length from component base to lead tips |
