RF Axial Lead Forming Series
Axial Lead Forming • Tape & Bulk High-Speed Lead Forming
Explore All Models ↓
HRFT-301U Horizontal Axial Former
Dual Precision Forming Gears • U-Shape Horizontal Forming
View HRFT-301U Specs →
RT-80 Loose & Tape Axial Former
Top Feed Hopper • Dual-Use Loose & Taped Forming
View RT-80 Specs →
RF-101F Automatic Axial Former
Motorized Automation • Bowl & Reel Continuous Feed
View RF-101F Specs →
Axial Lead Forming Machines
/
HRFT-301U HRFT-301U
Manual Taped Axial Lead Former - U Type (Inc. S/W/L Types)
The HRFT-301U is a cord-free manual hand-crank axial lead former delivering 4,000–6,000 pcs/hour of precision U-bend forming and trimming for resistors and diodes. Requiring zero operator training, its proven platform supports Slim narrow-pitch, Heavy-Duty wire, and cut-only tooling configurations.

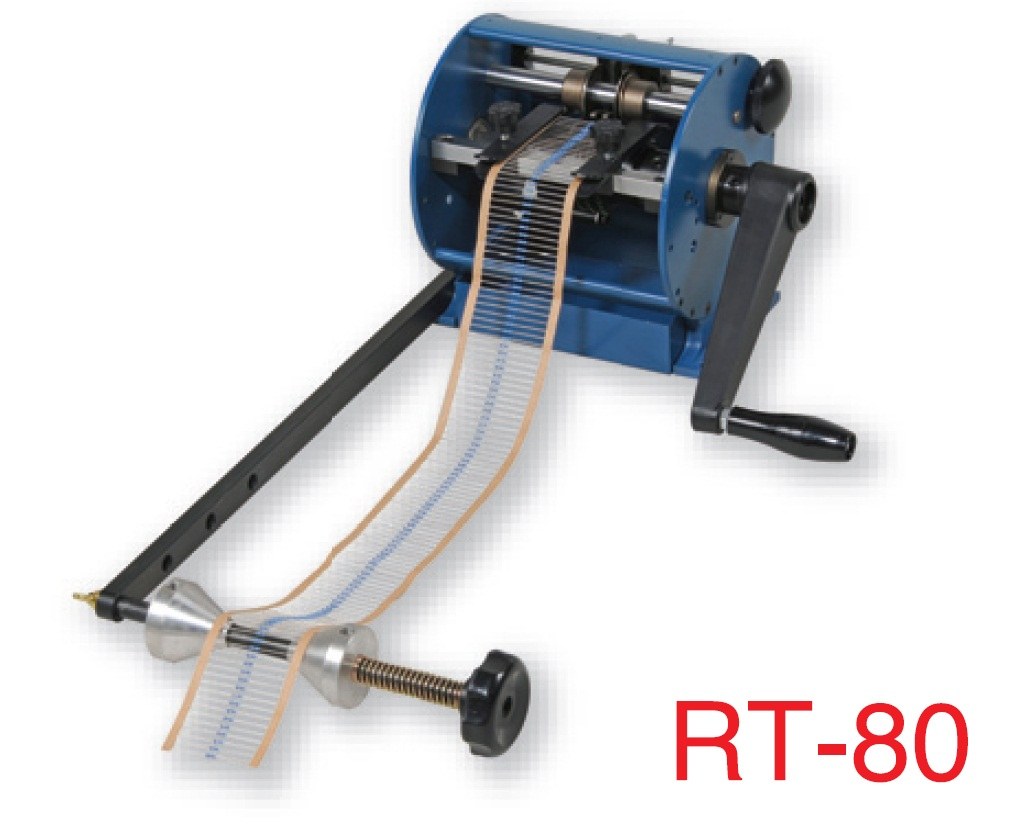

RT-80 RT-80
Hand-crank Taped Axial Lead Bender
The RT-80 is a manual hand-crank horizontal axial lead former delivering high-volume output up to 50,000 pcs/hour without electrical power. Built with precision tooling and rotary disc shears that impart zero axial tension, it upgrades seamlessly to the motorized RT-82 via the optional MT-1 module.

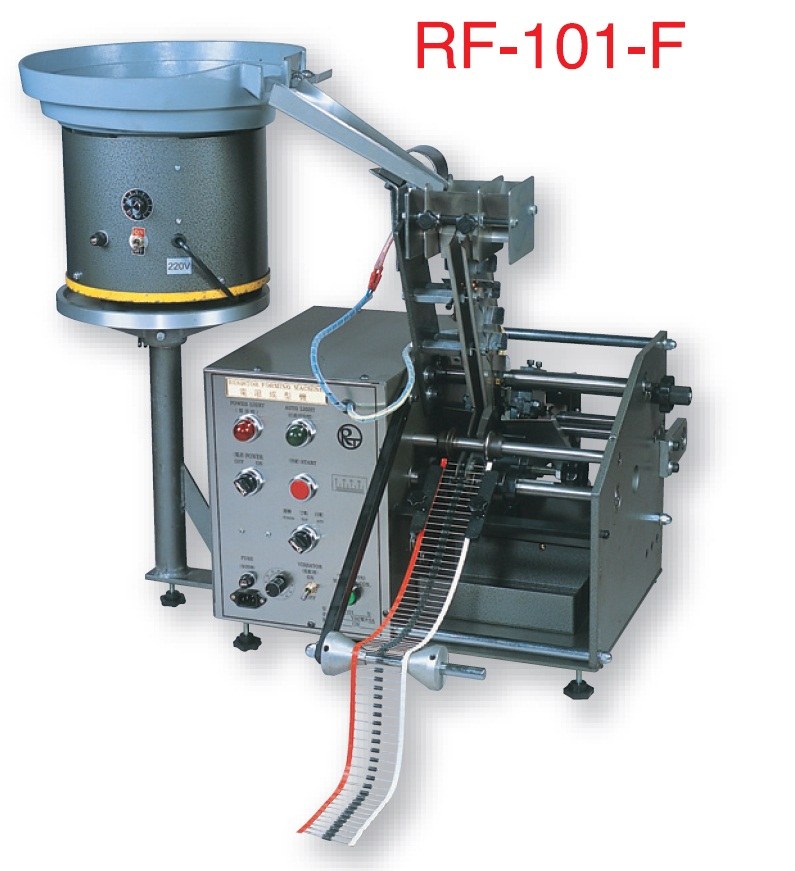

RF-101F RF-101F
Axial Lead Vertical Forming Machine (Stand-up Mount with Kinks)
The RF-101F is an axial lead former designed for 180° vertical stand-up mounting with dual standoff kinks (>= 5 mm height) for high-density PCBA layouts (110 pcs/min). Specifically suited for low shoulder (>1.2 mm) and compact pitch grids, it features modular quick-change die configurations.

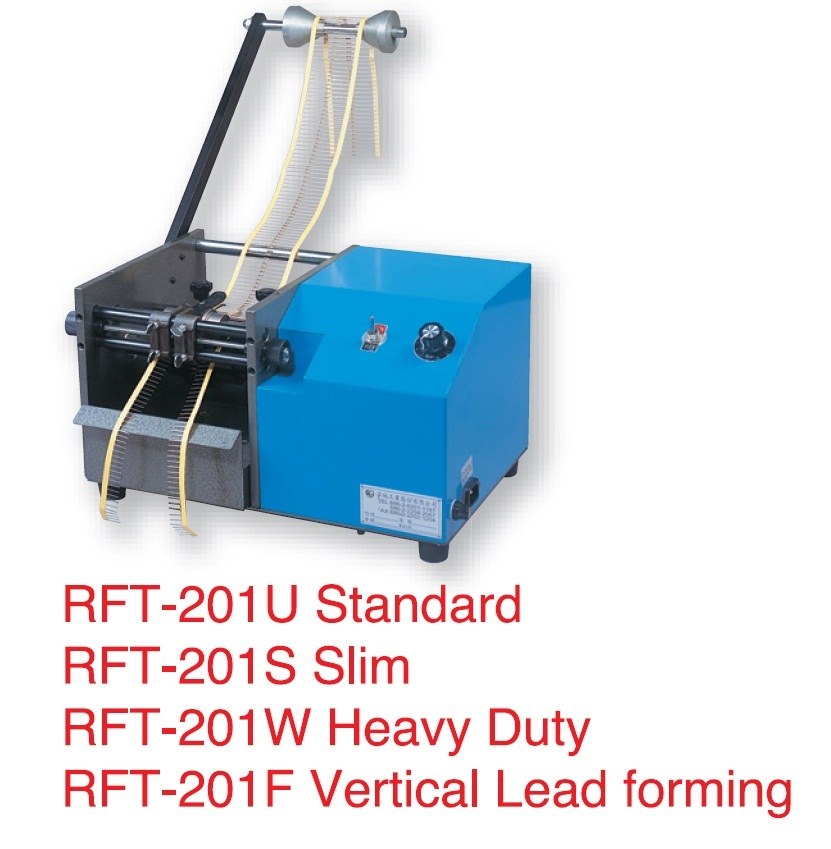

RFT-201U RFT-201U
Motorized Taped Axial Lead Forming Machine (U/F/S/W/L Series)
The RFT-201U is a high-speed motorized axial lead forming machine delivering extreme throughput up to 84,000 pcs/hour for horizontal U-bend insertion lines. Featuring rock-solid industrial gearing and effortless adjustment, it offers dedicated configurations for vertical (F), slim (S), and heavy-duty (W) forming.

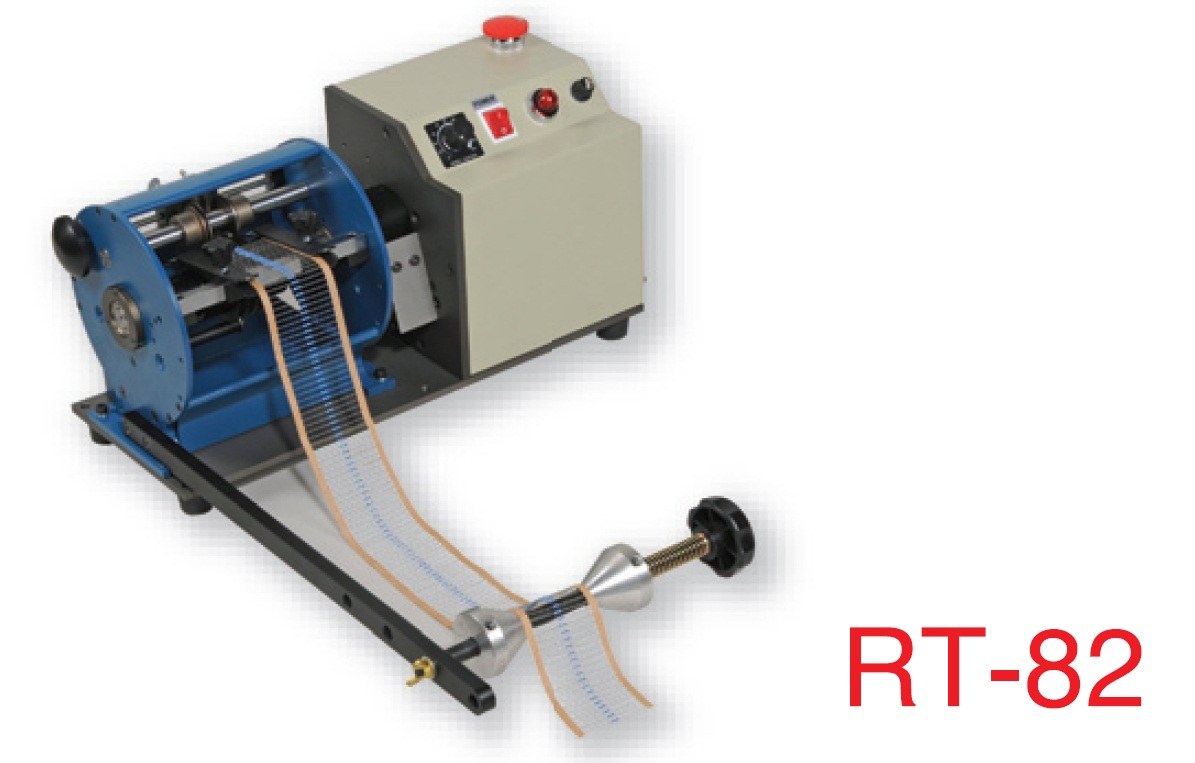

RT-82 RT-82
Motorized Taped Axial Lead Bender
The RT-82 is a motorized continuous axial lead former achieving high-speed throughput up to 60,000 pcs/hour for horizontal U-bend taped resistors. Featuring tool-free dimension adjustments and stress-free cutting, it can be retrofitted with the RT-10 loose hopper to upgrade into the dual-mode RT-86.

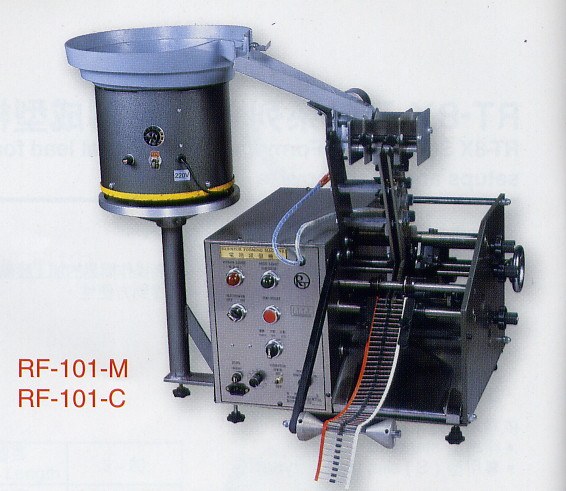

RF-101M RF-101M
Axial Lead Forming Machine (Horizontal Mount with Kinks)
The RF-101M is an axial lead former engineered for horizontal U-bending with dual standoff kinks (up to 110 pcs/min), ensuring firm PCB snap-in retention before wave soldering. It is available in dual loose/taped (RF-101M), loose-only (RF-101MA), and taped-only (RF-101MB) feeding configurations.

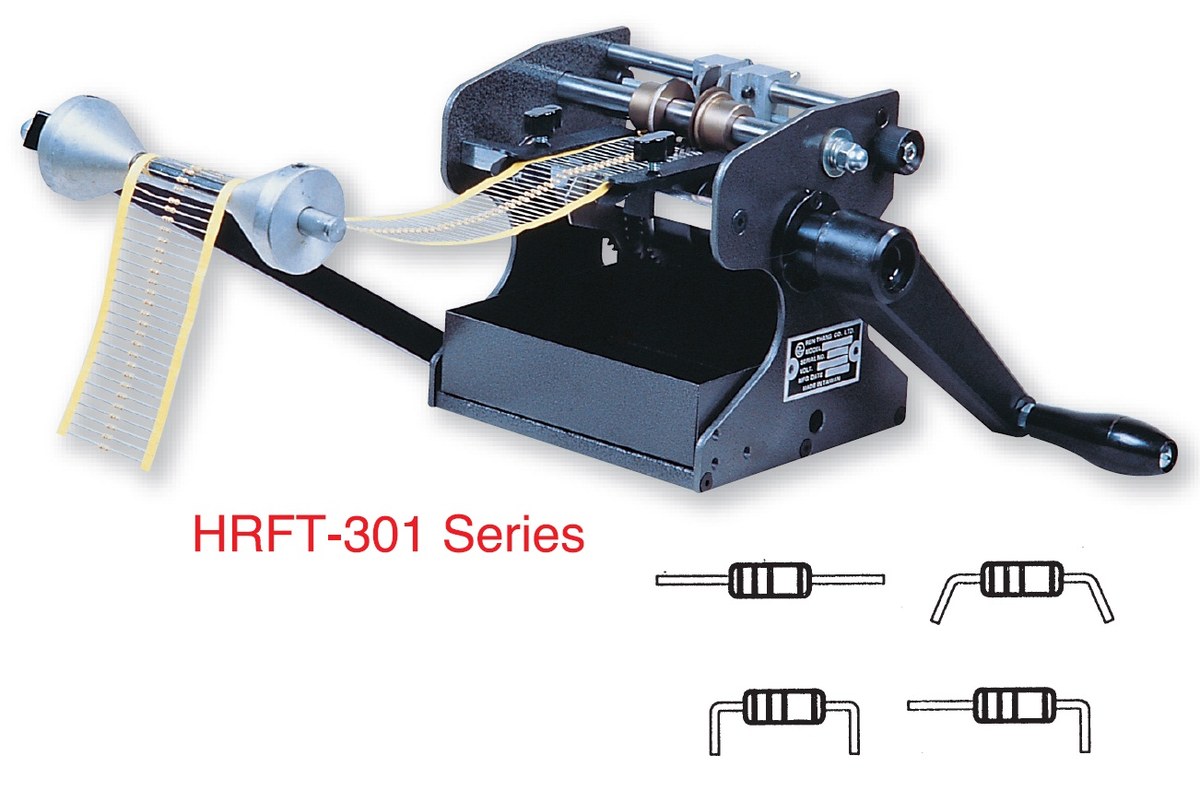

HRFT-301F HRFT-301F
Manual Taped Axial Lead Former - F Type (Vertical Lead Forming)
The HRFT-301F is a manual hand-crank vertical axial former that bends one lead 180° for high-density stand-up PCB insertion (4,000–6,000 pcs/hr). Accommodating lead pitches of 2.5–13.5 mm without electricity, it clamps securely to any assembly bench for versatile prototyping and small batches.

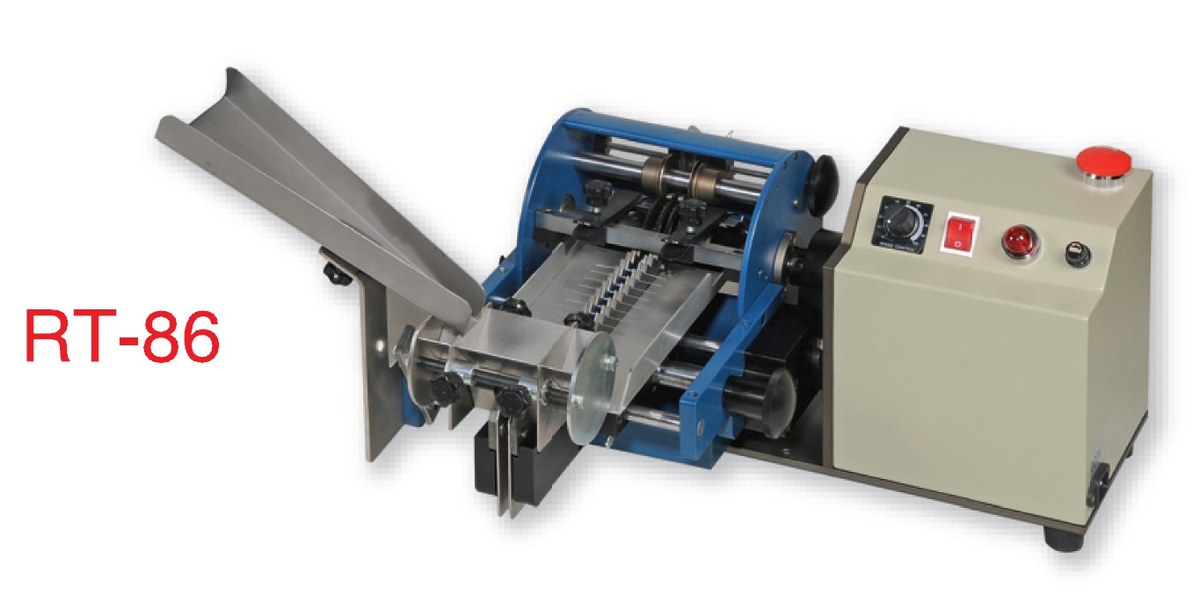

RT-86 RT-86
Motorized Taped and Loose Axial Lead Bender
The RT-86 is equipped with an RT-10 loose hopper to seamlessly accommodate both taped (43,000 pcs/hr) and loose (7,200 pcs/hr) axial resistors on a single machine. Its smooth feeding track eliminates manual placement, and it can be upgraded to the flagship automated RT-90 with a vibratory bowl.

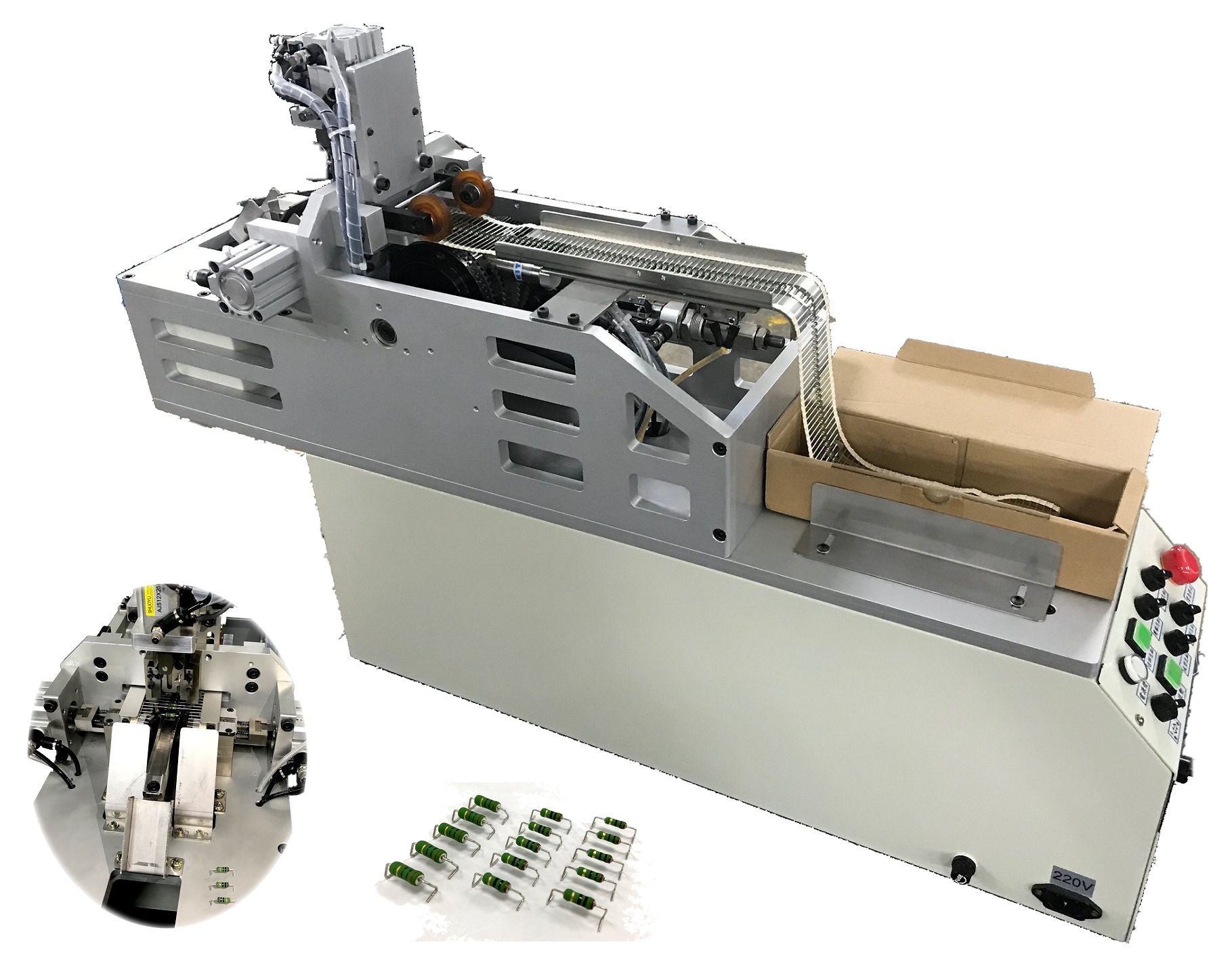

RF-200MB RF-200MB
Taped Axial Formed Part Feeder
The RF-200MB (RT200MB-Z) is an automated axial lead former dedicated to Z-bend forming of taped resistors, driven by a precision PLC controller for smooth operation. Engineered for robotic 'one after one' synchronized feeding, it delivers effortless tooling adjustment and repeatable Z-profile geometry.

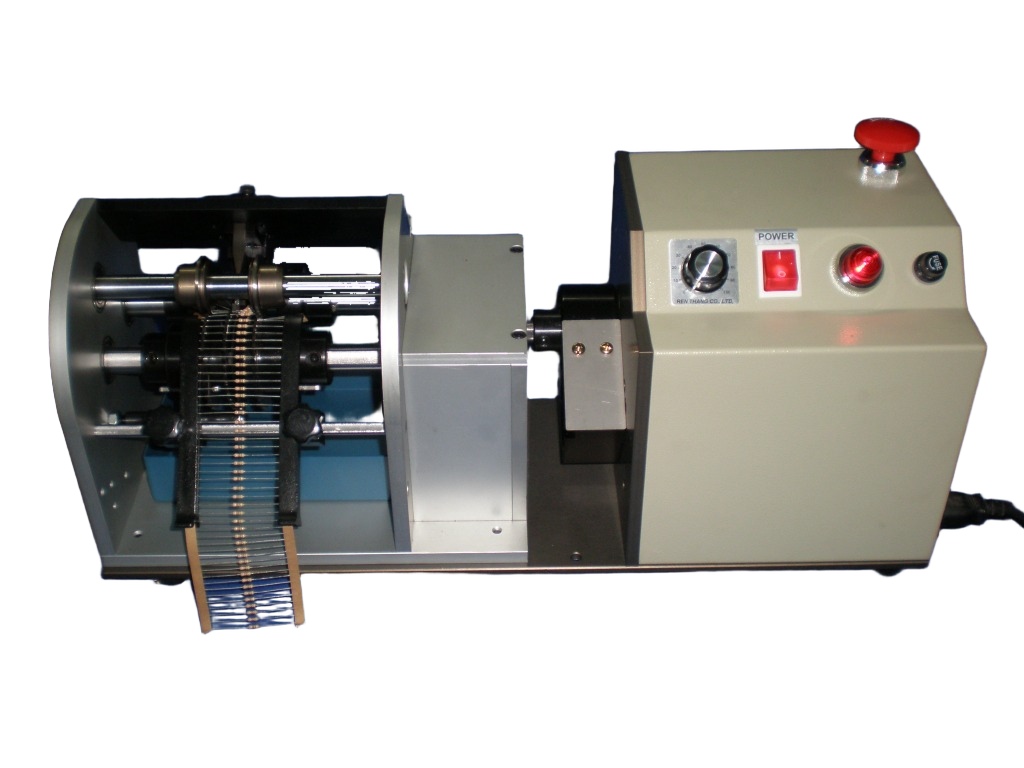

RT-82FK RT-82FK
Automatic Taped Axial Lead Forming Machine - FKK Type
The RT-82FK is a motorized vertical axial lead former engineered for high-speed 180° upright bending with simultaneous double standoff kinks (FKK profile), processing 40,000–60,000 pcs/hour. The formed snap-in kinks provide firm PCB retention and standoff clearance during wave soldering.

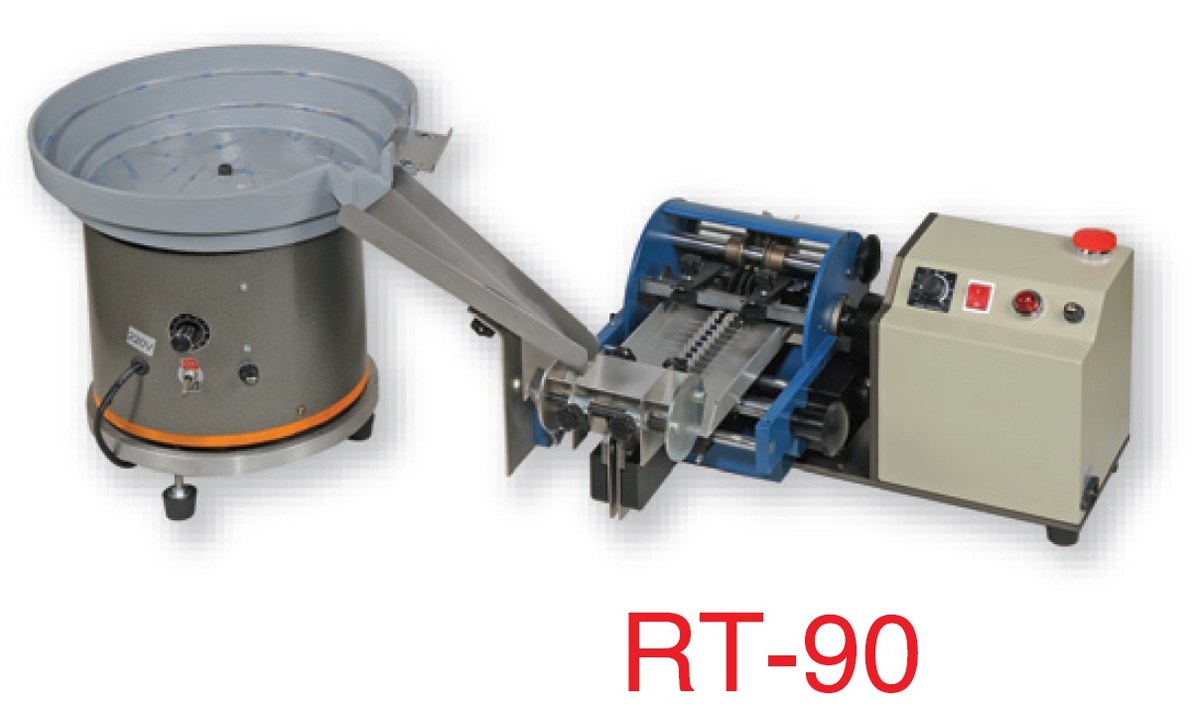

RT-90 RT-90
Motorized Taped and Loose Axial Lead Bender with Bowl Feeder
The RT-90 is the flagship automated axial lead forming machine, integrating a VP-87 vibratory bowl feeder for continuous automated loose part processing (9,000 pcs/hr) and taped operation (43,000 pcs/hr). Its heavy-duty 60 kg frame ensures whisper-quiet, zero-stress forming for demanding production floors.

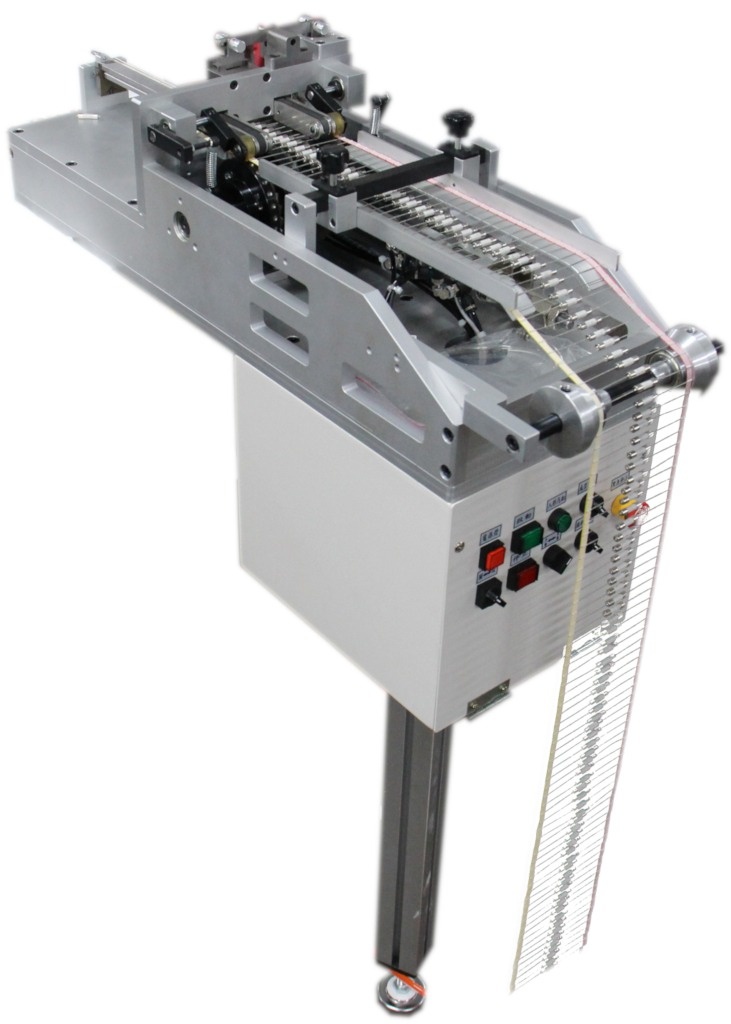

RT-200UL RT-200UL
Axial Horizontal Component Feeder 220V
The RT-200UL is a 220V automated horizontal loose-component feeder utilizing gentle vibration and precision sorting tracks to supply loose axial resistors and diodes continuously. Operating standalone or docked to forming stations, it eliminates manual staging bottlenecks with high reliability.
RT-86F RT-86F
Motorized Taped and Loose Vertical Axial Lead Bender
The RT-86F features the RT-10 loose hopper to process both taped (43,000 pcs/hr) and loose (7,200 pcs/hr) axial components into vertical stand-up configurations. Tool-free mode changeover eliminates manual sorting, and it can be expanded into the automated flagship RT-90F with a vibratory bowl.
RT-80F RT-80F
Hand-crank Vertical Axial Lead Bender
The RT-80F is a manual hand-crank vertical axial lead former delivering up to 50,000 pcs/hour for 180° upright stand-up PCB insertion. Precision dies produce gentle 1–3 mm bend radii preventing lead fatigue, with full compatibility to upgrade into the motorized RT-82F anytime.

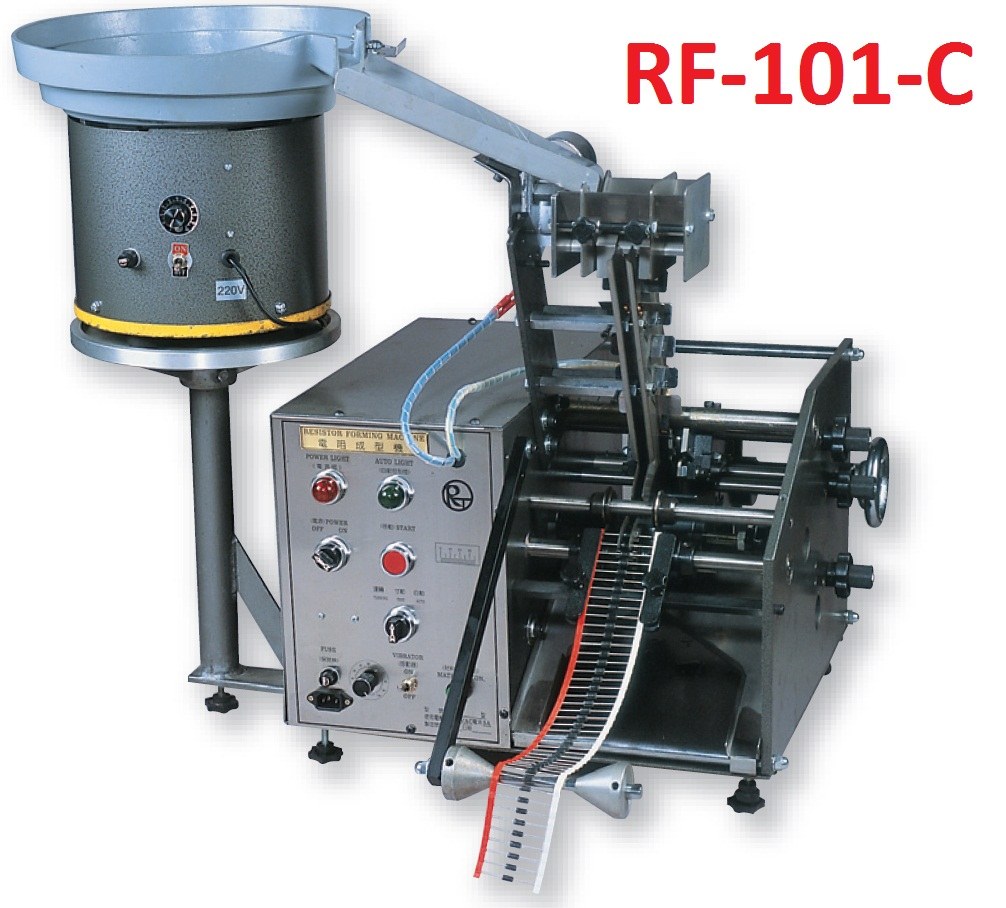

RF-101C RF-101C
Axial Lead Forming Machine (Horizontal Mount with Smashing Spots)
The RF-101C is an axial lead former specialized in punching fixed 2 mm lead smashing spots (flattened stand-off steps) at speeds up to 110 pcs/min. The flattened steps provide stable PCB standoff and uniform solder flow, with custom smashing tooling fabricated to customer drawings.
RT-90F RT-90F
Motorized Taped and Loose Vertical Axial Lead Bender with Bowl Feeder
The RT-90F is the flagship automated vertical axial former equipped with a VP-87 vibratory bowl for continuous loose-part vertical forming (9,000 pcs/hr) alongside high-speed taped feeding (43,000 pcs/hr). Its robust 60 kg construction guarantees zero-stress, highly consistent upright lead geometries.
RT-82F RT-82F
Motorized Vertical Axial Lead Bender
The RT-82F is a high-speed motorized vertical axial lead former producing up to 60,000 pcs/hour for upright PCB assembly. Featuring zero-stress cutting mechanics and precise 2.5–13.5 mm lead pitches, it easily expands into the taped/loose dual-use RT-86F by adding the RT-10 hopper.

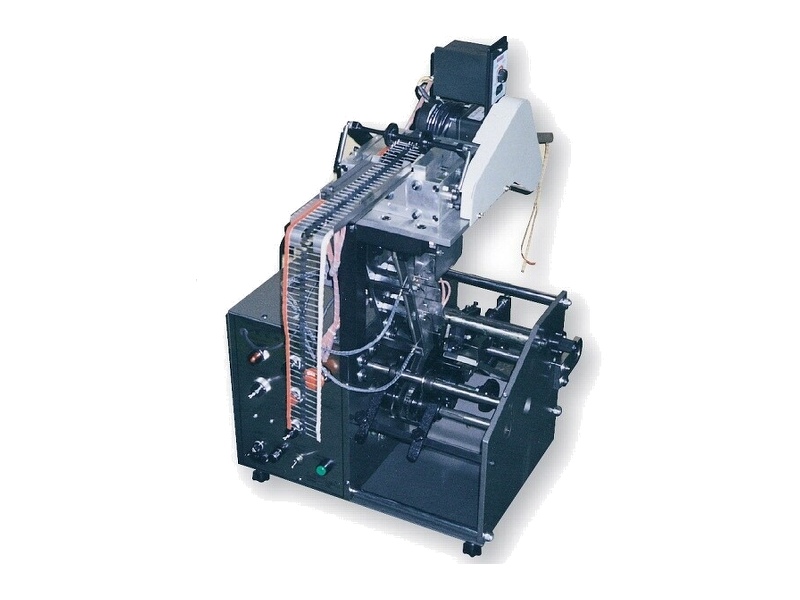

YF-730 YF-730
Axial Lead Forming Machine with Tape Ripping Apparatus
The YF-730 combines an axial vertical former with a patented tape-stripping head that removes 52 mm side bandoleer paper from power diodes without bending their leads. Processing up to 6,600 pcs/hr, it exposes full lead lengths for complex upright double-kink forming without manual peeling labor.
