RT-82F
Ren Thang Machine
The RT-82F is a high-speed motorized vertical axial lead former producing up to 60,000 pcs/hour for upright PCB assembly. Featuring zero-stress cutting mechanics and precise 2.5–13.5 mm lead pitches, it easily expands into the taped/loose dual-use RT-86F by adding the RT-10 hopper.
Processing & Feature Tags
BDF
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 60,000 pcs/小時 (電動帶裝) / Taped 60,000 pcs/Hour
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 470(L) x 180(W) x 235(H) mm
Net Weight 15 kgs
Catalog Page & Status
P.8 (Catalog_0008) • 在產 (Active)
【Key Machine Features & Advantages】
- Motorized high-speed vertical axial lead former, engineered for vertical stand-up high-density PCB assembly.
- Quiet motorized continuous drive; high production capacity up to 60,000 pcs/hour.
- Specialized vertical bending: bends one lead 180 degrees into a stand-up mount with pitch (P) 2.5 ~ 13.5 mm.
- Configurable for high-shoulder narrow-pitch or low-shoulder wide-pitch; bending R-angle 1~3 mm maintains lead integrity.
- Independent rotary disc cutters and precision vertical tooling impart zero mechanical stress or axial tension.
- Vertical cut lead length (B) 2~12 mm, support lead (H) < 25 mm, body length 3.6~18 mm, body diameter 1.5~6 mm.
- Modular upgrade capability: can be upgraded to taped/loose vertical former RT-86F by adding the RT-10 loose hopper.
【Revision Notes】 F型直立折彎成型；加裝 RT-10 散裝入料機構即可升級為 RT-86F。
Lead Forming & Geometric Parameter Specifications

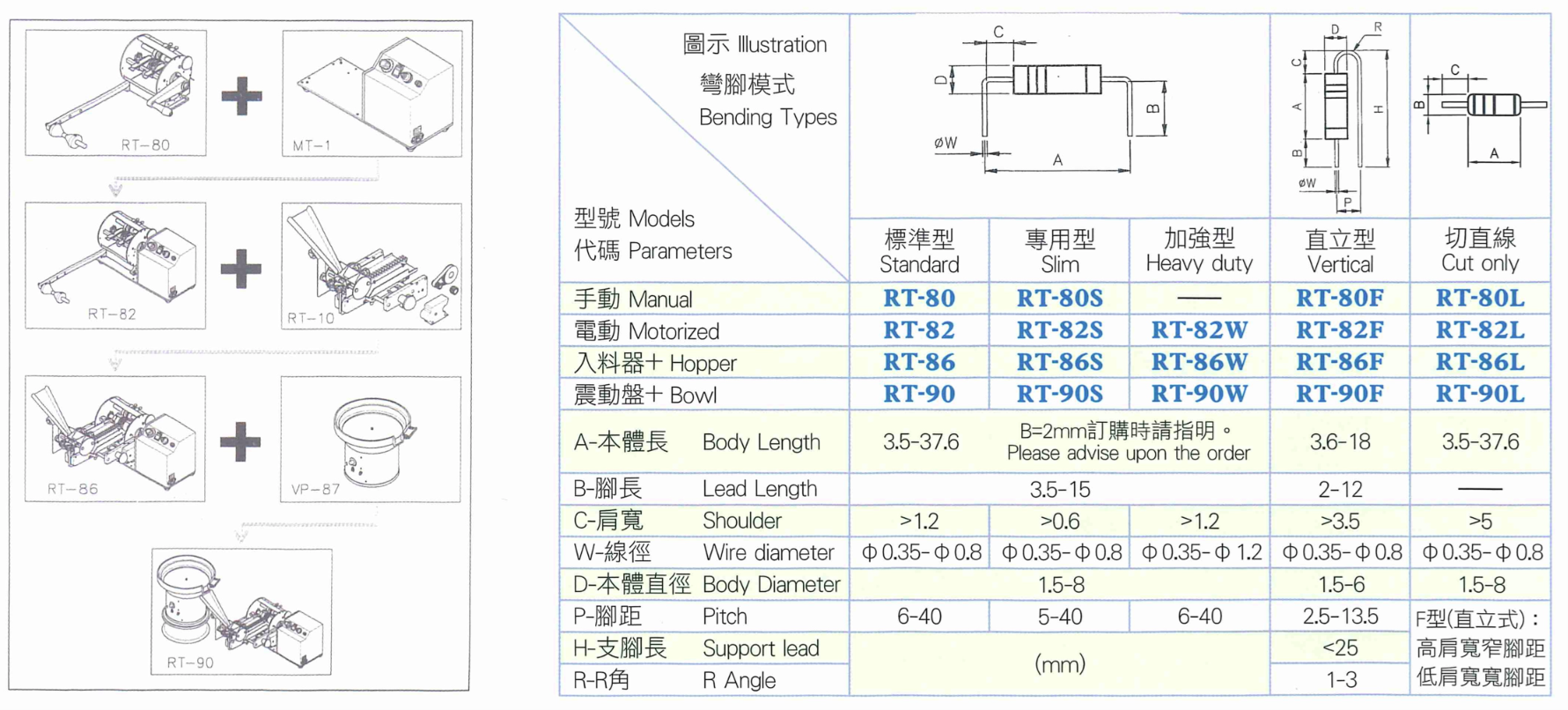

Unit: mm / Custom tooling available Dimension & Bending Schematic RT-82F
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A | Body Length (A) | 3.6 ~ 18 mm | Length of upright component body |
| B | Lead Length (B) | 2 ~ 12 mm | Lead length after vertical bending and cutting |
| C | Shoulder (C) | > 3.5 mm | Safe distance between vertical bend and component body |
| W | Wire Diameter (W) | Ø0.35 ~ Ø0.8 mm | Precision trimming with tungsten carbide cutter |
| D | Body Diameter (D) | 1.5 ~ 6 mm | Component outer diameter range of vertical vertical board |
| P | Pitch (P) | 2.5 ~ 13.5 mm | Supports high shoulder width and narrow lead spacing or low shoulder width and wide lead spacing |
| H | Support Lead (H) | < 25 mm | Vertical extension lead length |
| R | R Angle (R) | 1 ~ 3 mm | 180-degree bending angle does not damage the lead metal crystal |
