ICF-106
Ren Thang Machine
The ICF-106 utilizes precision punching dies to straighten DIP IC leads in 7 seconds per tube with extreme pitch stability, accommodating small ICs with only 2 pins per side. Supplied with 0.3" and 0.6" rails, custom variations are available for lead cutting (106C) and standoff kinking (106K).
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 7 秒/管料 (7 sec./tube)
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 500(L) × 400(W) × 360(H) mm
Net Weight 17 kg
Catalog Page & Status
P.12 (Catalog_0012) • 在產 (Active)
【Key Machine Features & Advantages】
- Precision punching method delivers exceptionally stable lead forming and pitch consistency, processing one stick/tube in 7 seconds.
- Wide processing range, specifically capable of handling small ICs with only 2 pins per side.
- Available in three specialized machine types: Lead Aligning (ICF-106), Lead Cutting (ICF-106C), and Kink/Standoff Forming (ICF-106K).
- Standard machine includes both 0.3" and 0.6" feeding rails, with optional 0.4" and 0.75" rails available.
- Applicable dimensions: Body width A 6~20mm, lead length H 4~12.7mm, thickness D 3~12.7mm, forming span L 0.3", 0.4", 0.6", 0.75".
- Premium high-reliability motor with low power consumption; unique feeding jig and gearing mechanism ensure minimal downtime.
- ICF-106C (cutting) and ICF-106K (kinking) are customized models built to order according to customer IC specifications.
【Revision Notes】 ICF-106C (剪腳) 與 ICF-106K (打K) 為客製專用機型。
Lead Forming & Geometric Parameter Specifications

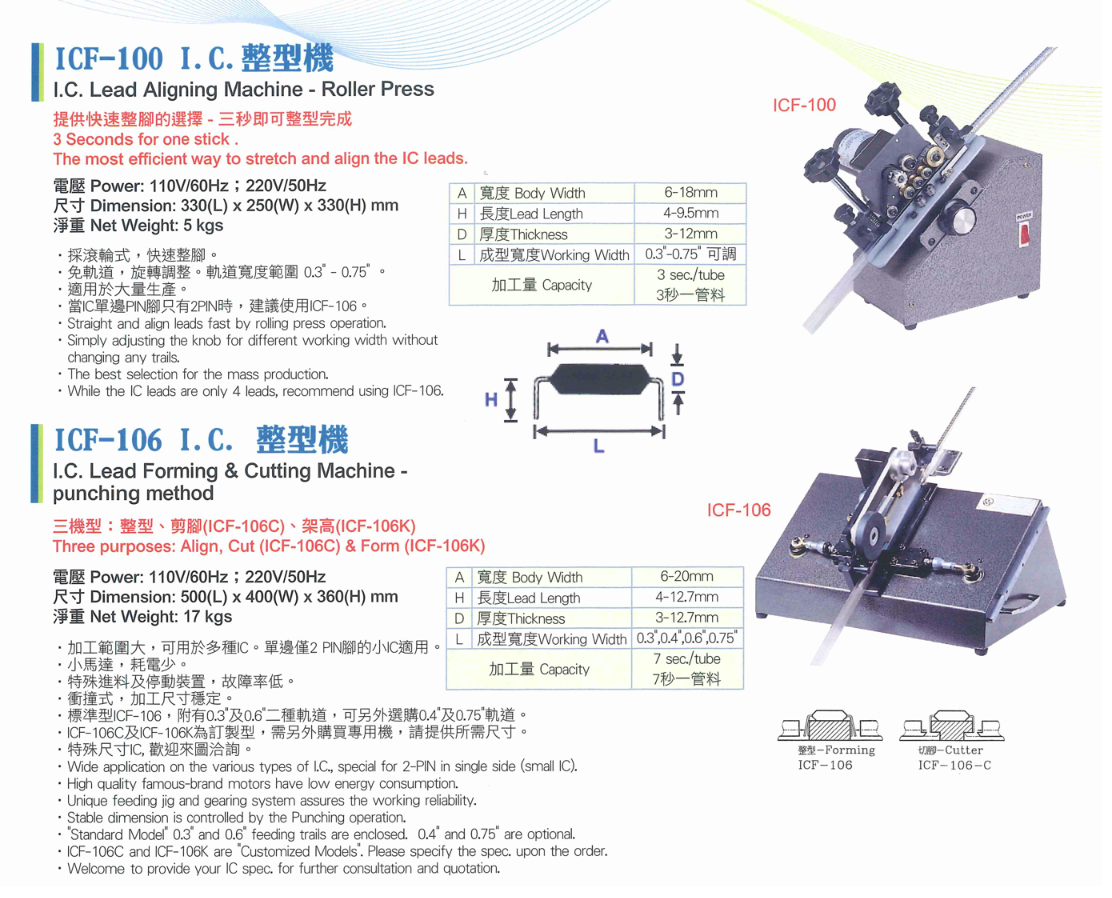

Unit: mm / Custom tooling available Dimension & Bending Schematic ICF-106
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A_BODY_W | Body Width (A) | 6 ~ 20 mm | Impact-type high-precision molding |
| H_LEAD_L | Lead Length (H) | 4 ~ 12.7 mm | Excellent lead verticality |
| D_THICK | Body Thickness (D) | 3 ~ 12.7 mm | Applicable to a variety of IC packages |
| L_SPAN_W | Working Width (L) | 0.3", 0.4", 0.6", 0.75" | Standard 0.3" and 0.6", optional 0.4" and 0.75" |
| CAP_TUBE | Processing Speed | 7 秒 / 管料 (7 sec./tube) | Only 2 lead on one side, suitable for small ICs |
| SUB_MODELS | Machine Variations | ICF-106 (整型) / ICF-106C (剪腳) / ICF-106K (架高打K) | Please provide size for customized special machine |
