JF-600
Ren Thang Machine
JF-600
Jumper Wire Forming Machine - Classic and long-lasting
跳線成型機
The JF-600 is a fully automatic spooled jumper wire straightening, cutting, and 90° forming machine delivering 7,500 pcs/hour. Its non-marking feed mechanism protects wire plating, while tool-free adjustment enables pitch variations from 5 to 42 mm without mold replacement.
Processing & Feature Tags
REL
Reels
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 7,500 pcs/hr
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 440(L) × 440(W) × 570(H) mm
Net Weight 41 kg
Catalog Page & Status
P.13 (Catalog_0013) • 在產 (Active)
【Key Machine Features & Advantages】
- Classic and long-lasting jumper wire forming machine, engineered for automatic straightening, cutting, and 90-degree bending of spooled wire.
- High production output up to 7,500 pcs/hour with fully automatic unmanned feeding and cutting operation.
- Special gentle wire-feeding mechanism ensures ultra-smooth wire delivery without scratching or leaving marks on the wire surface.
- Patented tool-free lead width (L) adjustment allows effortless tuning from 5 to 42 mm without replacing forming molds (custom 2.5~42 mm available).
- Premium tungsten carbide tooling delivers outstanding wear resistance and exceptionally long service life with minimal maintenance.
- Compact, lightweight, energy-saving, and economical design—delivering high ROI for mass PCB jumper wire preparation.
- Optional heavy-duty JF-600W model available for thicker wire diameters from Ø1.0 to 1.2 mm.
【Revision Notes】 標準線徑 Ø0.6~0.7mm；JF-600W加強型支援線徑 Ø1.0~1.2mm；腳長H為固定規格需指明。
Lead Forming & Geometric Parameter Specifications

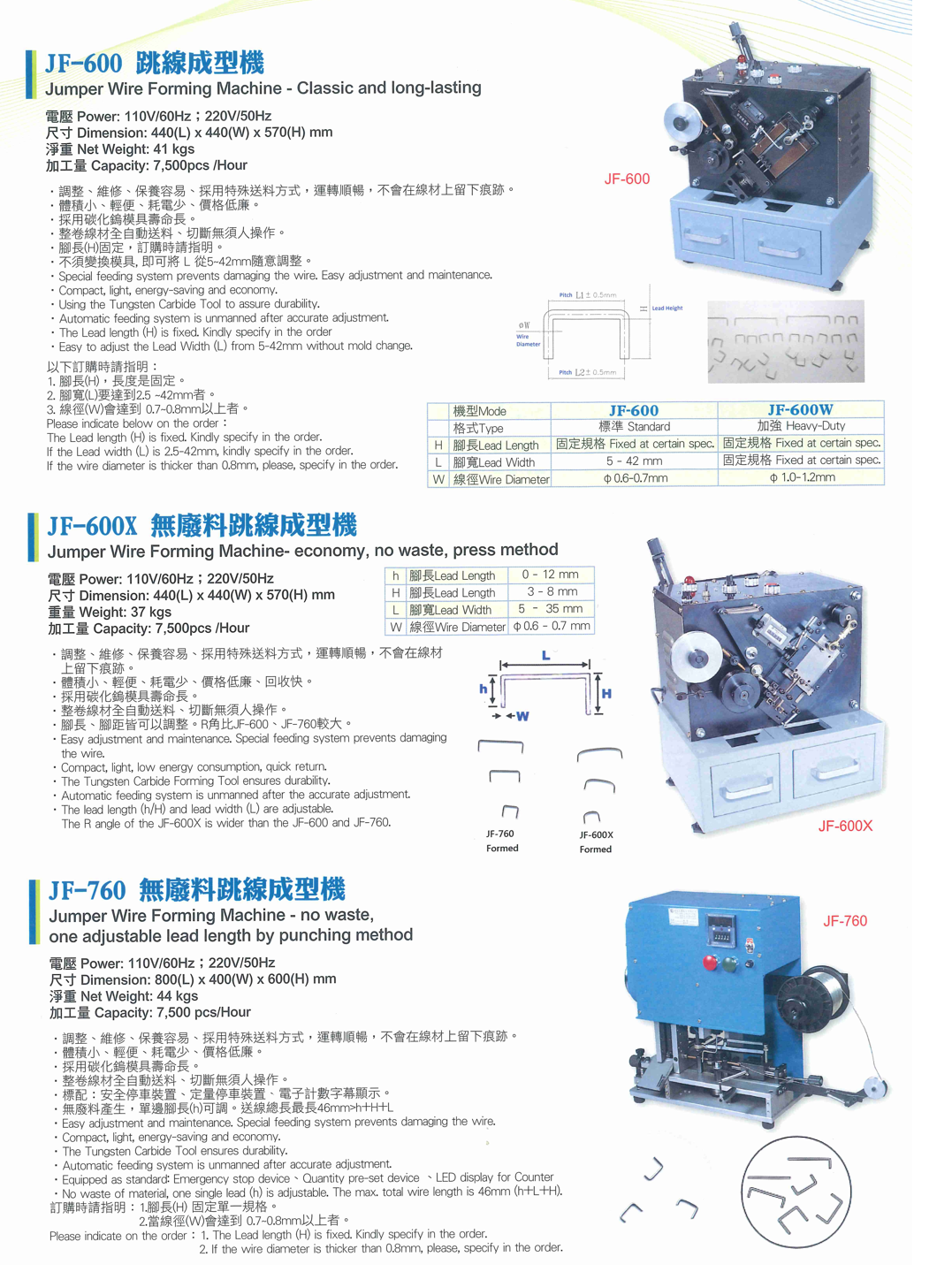

Unit: mm / Custom tooling available Dimension & Bending Schematic JF-600
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| L_WIDTH | Lead Width (L) | 5 ~ 42 mm (免換模隨意調整) | Optional 2.5 ~ 42 mm can be specified when ordering |
| H_LEN | Lead Length (H) | 固定單一規格 (訂單指明) | Fixed at certain specified spec. |
| W_WIRE | Wire Diameter (W) | Ø0.6 ~ Ø0.7 mm | Tungsten carbide forming forming tooling does not damage the wire |
| JF600W_OPT | Heavy-Duty Model (JF-600W) | 線徑 Ø1.0 ~ Ø1.2 mm / H與L固定規格 | Optional models suitable for thick wire diameter processing |
| CAP_HR | Processing Capacity | 7,500 pcs / 小時 (Hour) | Fully automatic whole roll feeding, cutting and bending |
