RAM-60
Ren Thang Machine
The RAM-60 is an automated centrifugal planetary solder paste mixer engineered for thorough degassing and homogenization of standard 500g solder paste jars. By combining simultaneous revolution and rotation, it warms and mixes refrigerated paste in minutes without unsealing the container.
Processing & Feature Tags
500g
/
1000g
罐裝錫膏
(萬用治具
ø35~65mm)
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 同時攪拌兩罐 (500g/1000g)；攪拌時間 0.1~9.9 分鐘可調
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance 冷藏錫膏免開罐均勻脫泡，運轉噪音 < 35dB
Dimensions (L×W×H) 390(L) × 390(W) × 385(H) mm
Net Weight 45 kg
Catalog Page & Status
P.23 (Catalog_0023) • 量產中
【Key Machine Features & Advantages】
- Standard Process Uniform Mixing: Dual-axis planetary centrifugal rotation softens and deaerates refrigerated solder paste quickly without pre-opening lids.
- Dual-Jar High Efficiency: Simultaneously accommodates and mixes 2 bottles (500g/1000g), greatly optimizing SMT printing preparation workflow.
- Audio-Visual Finish Notification: Features flashing LED lights and audible buzzer alerts immediately upon cycle completion to avoid paste settling.
- Digital Microcomputer Control: Clear LED display with timer memory function; mixing duration is freely programmable from 0.1 to 9.9 minutes.
- Universal Adjustable Fixtures: Fits jars ø35 to 65mm in diameter and up to 95mm in length, compatible with all major solder paste packaging brands.
- Ultra-Quiet Operation & Balancer: Soundproof design operates at <35dB; optional 60E counterweight kit (300g/200g/100g/50g) allows stable single-jar operation.
【Revision Notes】 20260825 型錄規格核實更新：主軸轉速 60Hz 600/150 rpm, 50Hz 500/120 rpm
Lead Forming & Geometric Parameter Specifications

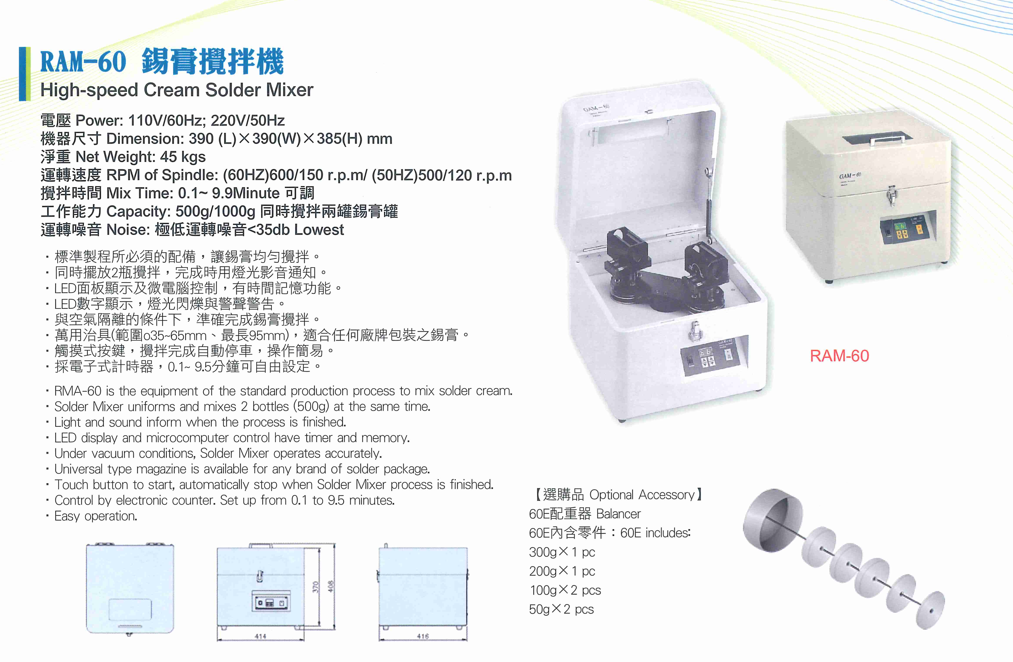

Unit: mm / Custom tooling available Dimension & Bending Schematic RAM-60
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| CAPACITY | Mixing Capacity | 500g / 1000g (可同時攪拌 2 罐) | Place 2 at the same time bottle mixing, or can be used with a 60E counterweight for single bottle mixing |
| RPM_SPINDLE | Spindle Speed (RPM) | 60Hz: 600/150 rpm ; 50Hz: 500/120 rpm | Revolutionary and rotational dual-axis centrifugal operation, accelerated uniform softening and deaeration |
| TIME_MIX | Mixing Time Range | 0.1 ~ 9.9 分鐘 (自由設定) | Microcomputer electronic timer control, with time memory function |
| NOISE_LEVEL | Operating Noise Level | < 35 dB (極低噪音) | Ultra-quiet operating mechanism, suitable for clean rooms and laboratory environments |
| JIG_SPEC | Universal Fixture Range | 直徑 ø35 ~ 65 mm，長度最長 95 mm | Suitable for any brand packaging and standard round cans of solder paste |
| ALARM_SYS | Process Completion Alert | 燈光閃爍與蜂鳴警報雙重提示 | Touch button start, automatic shutdown and warning notification after mixing is completed |
| OPT_BALANCER | Optional Balancer (60E) | 60E 配重器 (含300g×1, 200g×1, 100g×2, 50g×2) | Balance the high-speed centrifugal rotation inertial force when operating on a single tank |
