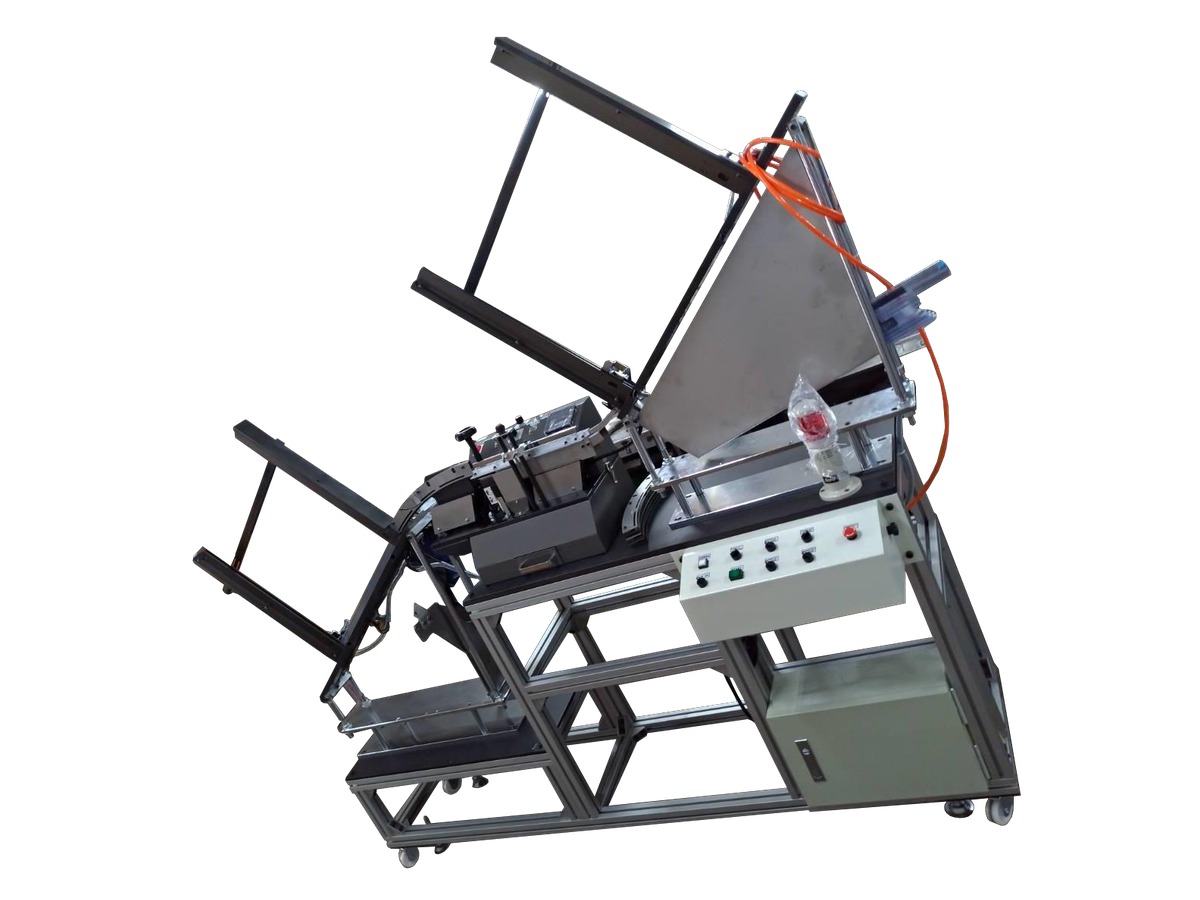

RT-700+

Automatic Tube Component Feeder Combo Systems

自動管裝供料組合系統

The RT-700+ is a fully integrated turnkey tube automation cell connecting the RT-700 feeder with RT-500/600 formers and RT-710 tube reloaders. Synchronized via optical interlock signals, it delivers closed-loop automatic tube feeding, lead forming, and re-tubing with zero manual intervention.

Processing & Feature Tags

TUB

STK

TUB

AC Motor

SEN

SYS

BDF

Straight Cutting

ENGINEERING SPECIFICATIONS

Machine Specifications & Performance

Processing Capacity 最高達 6,000 pcs/小時 (依連線主機規格連動)

Power / Air Supply 110V/60Hz ; 220V/50Hz

Standard Tolerance ±0.3mm

Dimensions (L×W×H) 1600(L) x 650(W) x 1700(H) mm (依組合機型配置)

Net Weight 約 65 ~ 95 kgs (含連線主機與機架工作台)

Catalog Page & Status

P.11 (Catalog_0011) • 在產 (Active)

【Key Machine Features & Advantages】

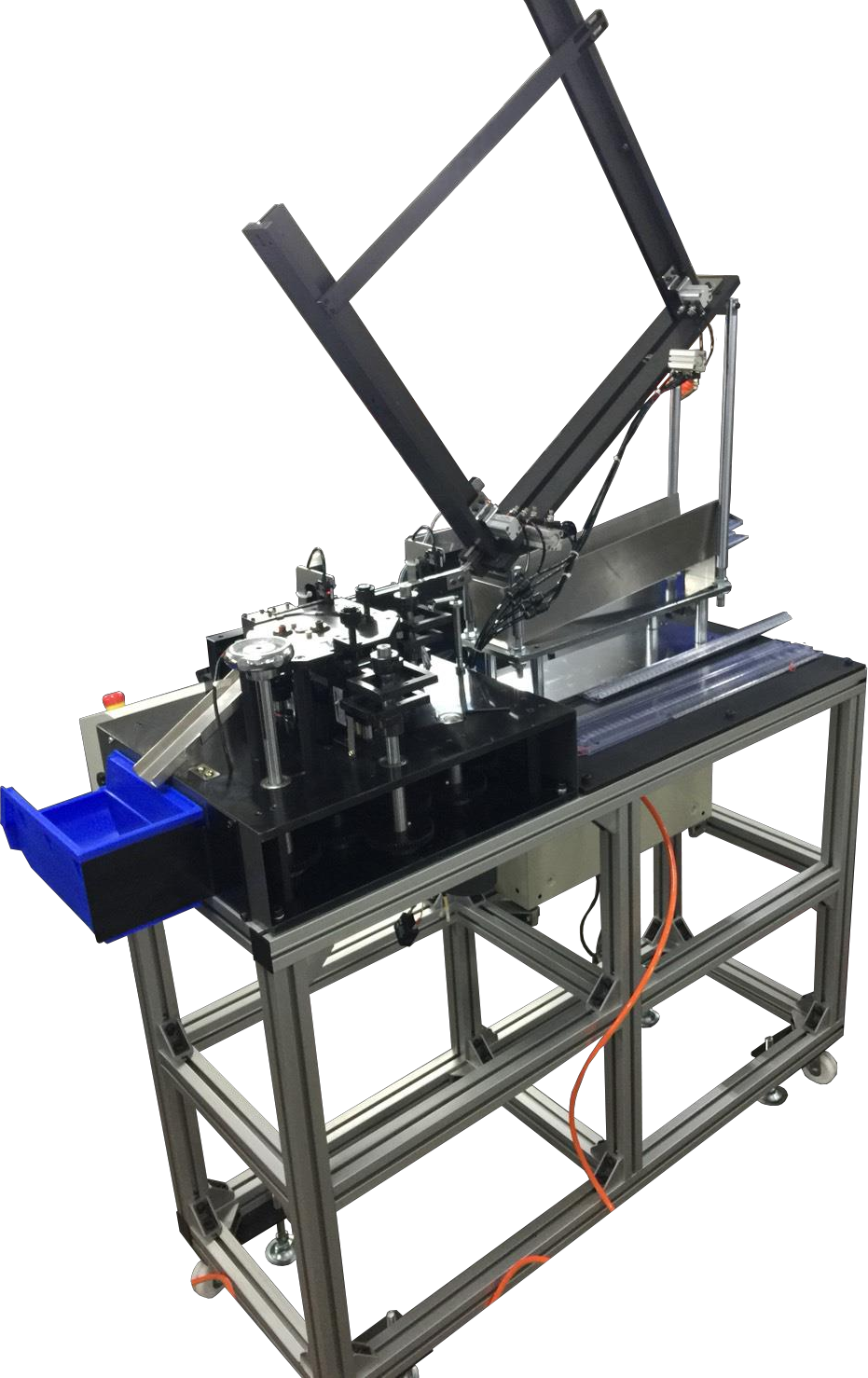

Turnkey Modular Line Integration: Powered by RT-700 automatic tube feeder as the central hub, seamlessly linking with RT-500/RT-600 (power transistor former), CF-360/CF-360LX (radial cutter), and YF-900 (transistor former).

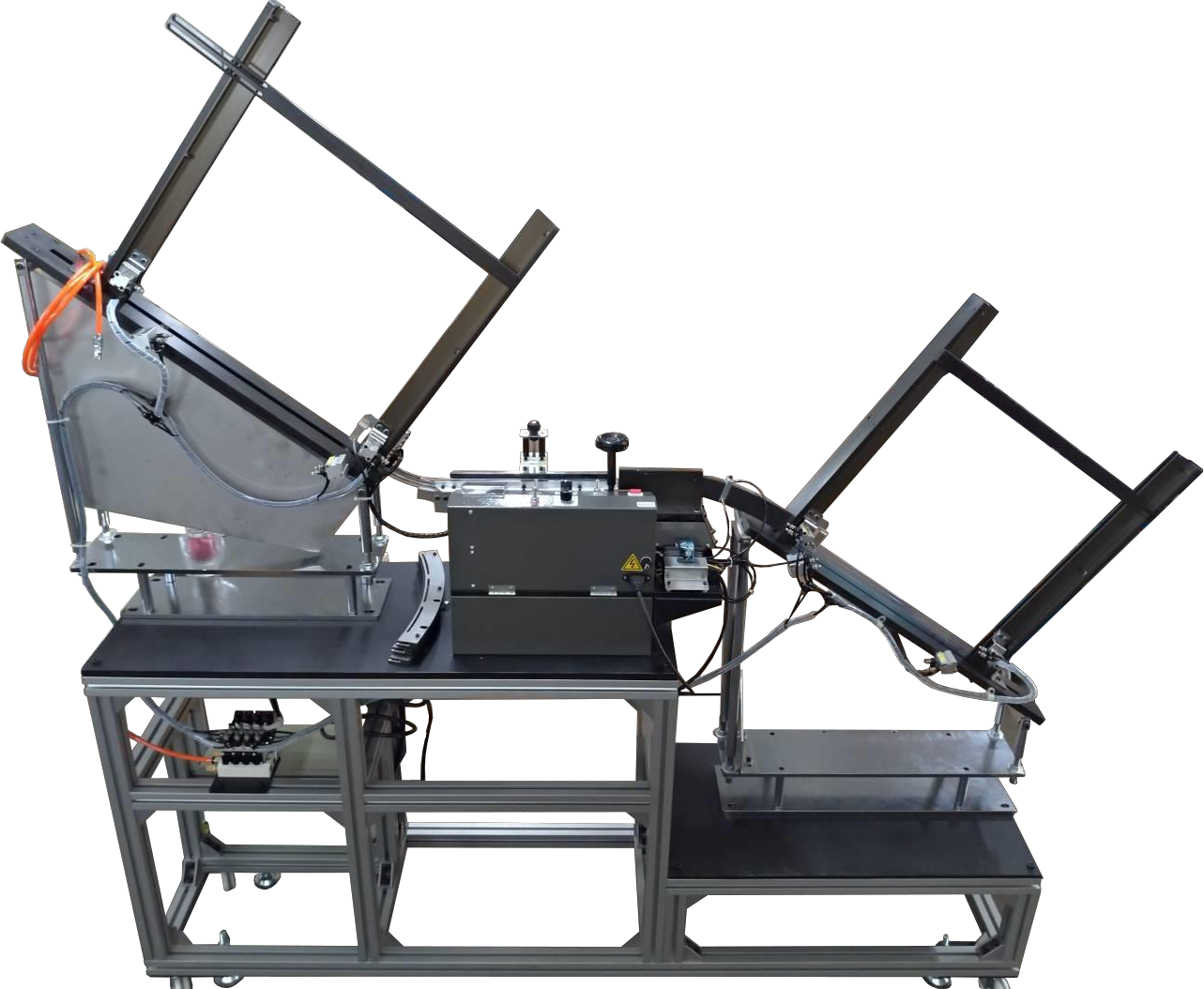

Closed-Loop Turnkey Line: RT-700 (Feeder) + CF-360 (Cutter) + RT-710 (Loader) delivers fully automatic feeding, precision lead trimming, and automatic re-tubing.
20-Tube High Capacity Magazine: Inclined magazine holds up to 20 component tubes simultaneously with automatic empty tube ejection, eliminating manual loading bottlenecks.
Optical Sensor Interlock & Auto Tube Ejection: High-precision sensors track component infeed and synchronized cycle timing, ensuring zero part jams and continuous line operation.
Save 70%+ Labor Costs: Eliminates manual tube handling, allowing a single operator to oversee 3 to 5 automated lines simultaneously.
Protect Leads & Guarantee Quality: Automated non-contact mechanical transfer protects delicate power transistor pins from manual bending distortion and handling damage.
Modular Plug-and-Play Design: Flexible workstation layout allows effortless reconfiguration, expansion, or individual standalone machine operation.

【Revision Notes】管裝全自動連線模組化方案；包含 RT-700+RT-500 成型組合，以及 RT-700+CF-360+RT-710 進料-切腳-回裝管組合。

Lead Forming & Geometric Parameter Specifications

Unit: mm / Custom tooling available

Dimension & Bending Schematic RT-700+

Callouts match specifications in the table (Click image to enlarge)

Code	Parameter	Standard Value / Range	Engineering Notes

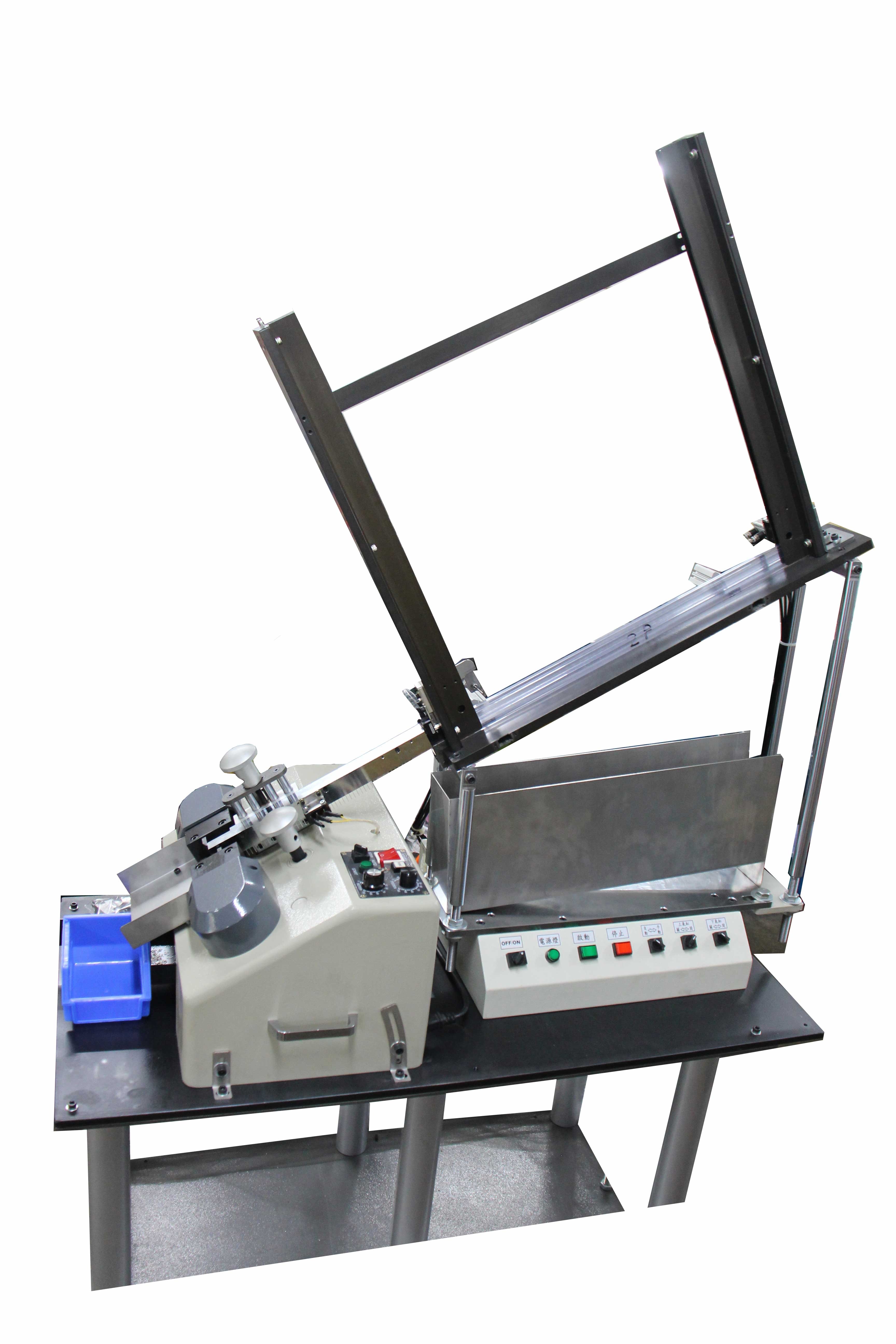

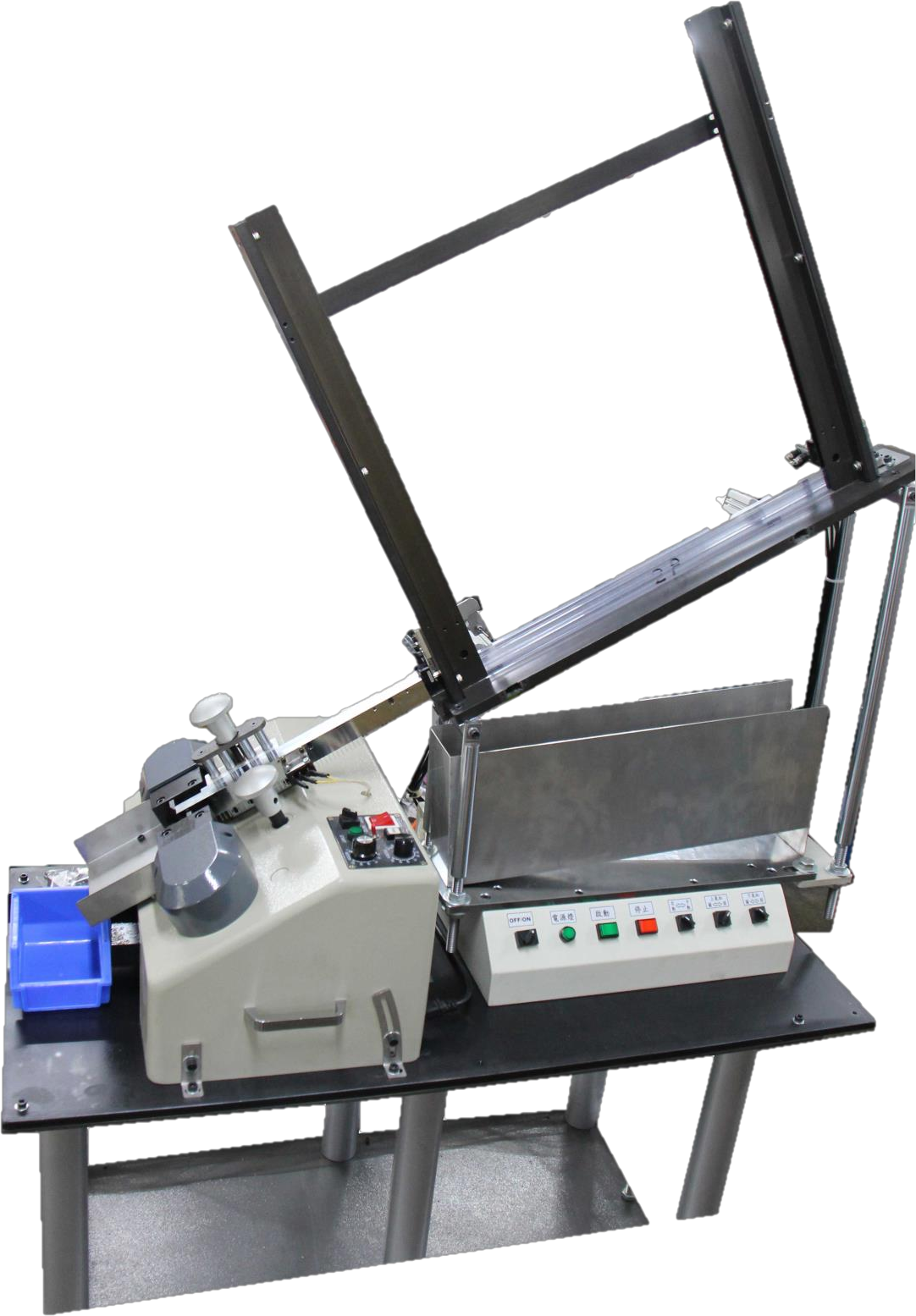

SYS_COMBO_1	Combo Option 1	RT-700 入料機 + RT-500/600 成型機	TO-220/247 automatic continuous tube feeding and bending forming
SYS_COMBO_2	Combo Option 2	RT-700 入料 + CF-360 剪腳 + RT-710 出料	Fully automatic continuous feeding, fixed-length cutting and automatic rewinding into tubes
MAG_CAP	Magazine Capacity	20 管 (Tubes)	Large-capacity material tube library, replacing manual continuous intubation
COMPAT_HOST	Compatible Hosts	RT-500, RT-600, CF-360, CF-360LX, RT-710, YF-900	Modular flexible series connection with various types of molding and lead-cutting hosts
