AR-106
Air Drive Lead Forming Machine - Twin Cylinder
氣動式零件引腳成型機-雙氣缸
The AR-106 features opposed dual pneumatic cylinders and a rigid trapezoidal anvil base, engineered for precise bilateral forming and trimming of transistors, power devices, capacitors, and resistors with 7–20 mm lead pitch in a single stroke. Modular quick-change tooling supports custom bidirectional multi-action cycles with zero mechanical distortion.
Processing & Feature Tags
Odd Packaging
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 手放三秒一顆 Hand-feeding 1 pcs in 3 seconds
Power / Air Supply 使用氣壓: 5 kgs/cm²
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 420(L) x 300(W) x 200(H) mm
Net Weight 10 kgs
Catalog Page & Status
P.1 (Catalog_0001) • 在產 (Active)
【Key Machine Features & Advantages】
- Dual-Cylinder Bilateral Forming: Opposed twin pneumatic cylinders apply balanced clamping and forming pressure simultaneously from both sides.
- Trapezoidal Anvil Base: Stepped anvil design securely cradles through-hole components across varying lead pitches from 7 to 20 mm.
- Bidirectional Multi-Action Customization: Capable of multi-stage sequential forming; submit component drawings and samples for tailored engineering design.
- Wide Component Processing Range: Accommodates power transistors (TO-220/TO-247), radial capacitors, resistors, and pre-bent leads.
- Simultaneous Trim & Form: Completes lead cutting and complex forming in a single stroke for high throughput and consistent part geometry.
- Compact Industrial Footprint: Benchtop-friendly chassis with modular quick-change die tooling.
- Custom Application Tooling: Includes one custom-machined die set built to order; interchangeable die sets can be added for multiple product runs.
- Expert Engineering Support: Fast technical evaluation and turnkey tooling proposals upon receiving customer component drawings.
【Revision Notes】 成型規格固定於單一模具組，更換模具可支援多種腳距與Kink深度。
Lead Forming & Geometric Parameter Specifications

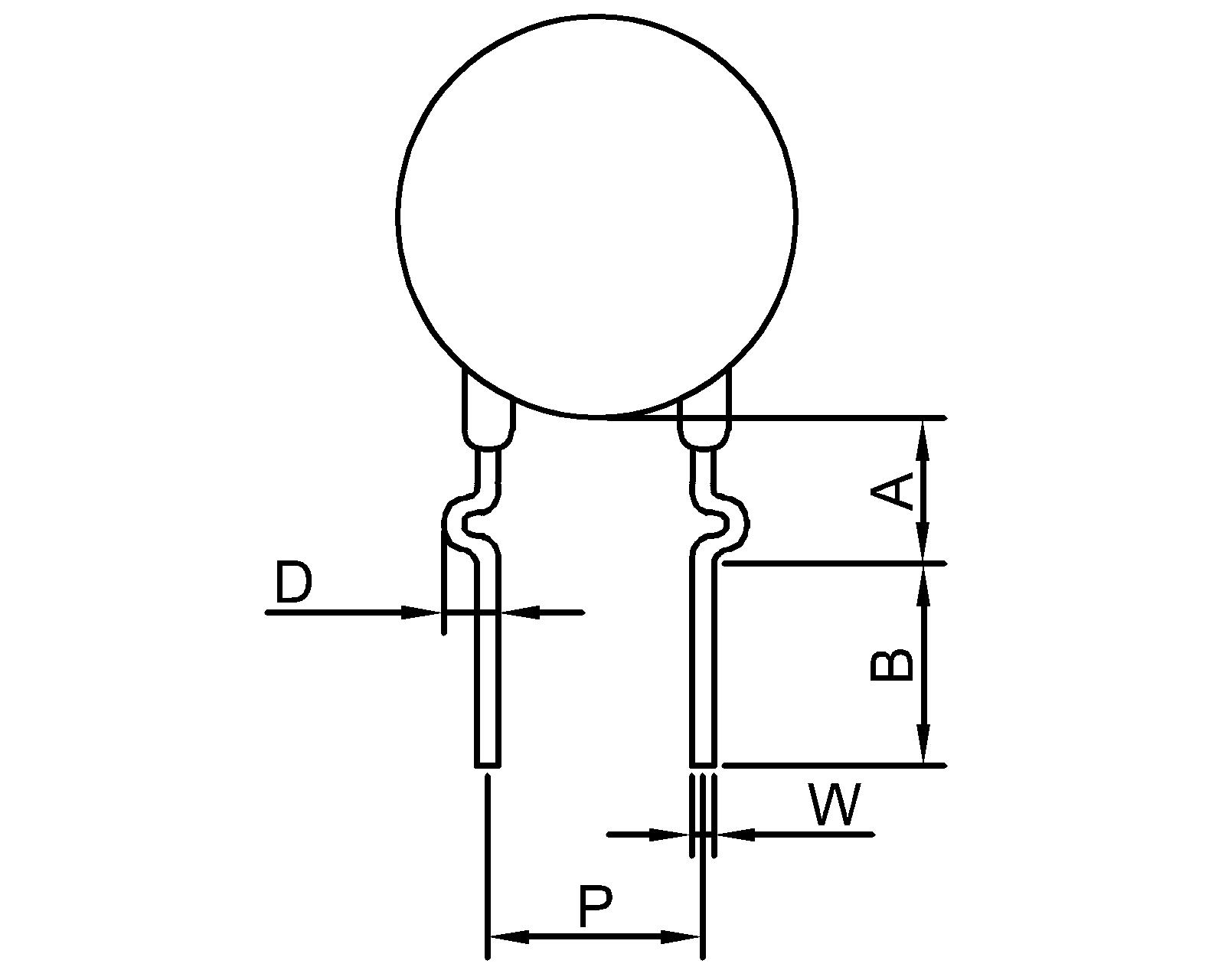

Unit: mm / Custom tooling available Dimension & Bending Schematic AR-106
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A | Kink Height (A) | 常見5mm (Standard 5mm) | Inward or outward kink requires dedicated die sets; please specify other fixed specifications |
| B | Lead Length (B) | 常見5mm (Standard 5mm) | Please specify required fixed length after lead cutting |
| D | Kink Depth (D) | 常見2mm (Standard 2mm) | Custom tooling available for varying inward/outward kink depths |
| P | Pitch (P) | 標準7-20mm (Standard 7-20mm) | Trapezoidal nest base accommodates components with varying lead pitches |
| W | Wire Diameter (W) | 請提供最大值 (Advise Max Value) | Custom stamping die clearance machined according to wire diameter |
