AR-110
Air Drive Lead Cutting Machine - Single Cylinder
氣動式零件引腳裁斷機-單氣缸
The AR-110 utilizes pneumatic blade actuation paired with a multi-aperture matrix cutting plate to deliver gentle, low-stress lead shearing for odd-form components and multi-pin arrays. Easily interchangeable custom plates provide uniform, repeatable lead lengths without risking mechanical shock to sensitive devices.
Processing & Feature Tags
Odd Packaging
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 手放三秒一顆 Hand-feeding 1 pcs in 3 seconds
Power / Air Supply 使用氣壓: 5 kgs/cm²
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 280(L) x 150(W) x 130(H) mm
Net Weight 8 kgs
Catalog Page & Status
P.1 (Catalog_0001) • 在產 (Active)
【Key Machine Features & Advantages】
- Pneumatic Blade Actuation: Air-powered cutting mechanism delivers smooth, low-impact shearing to eliminate mechanical shock to sensitive components.
- Multi-Aperture Cutting Plate: Pre-drilled matrix plate accommodates diverse odd-form components, irregular pin arrays, and multi-lead packages.
- Interchangeable Custom Tooling Plates: Cutting plates are easily swapped or customized for specialized component shapes; sample consultation welcome.
- Precision Fixed Lead Trim Height: Provides uniform, repeatable trimmed lead lengths; please specify required trim length upon ordering.
【Revision Notes】 剪切長度可依訂單需求客製指定孔板厚度。
Lead Forming & Geometric Parameter Specifications

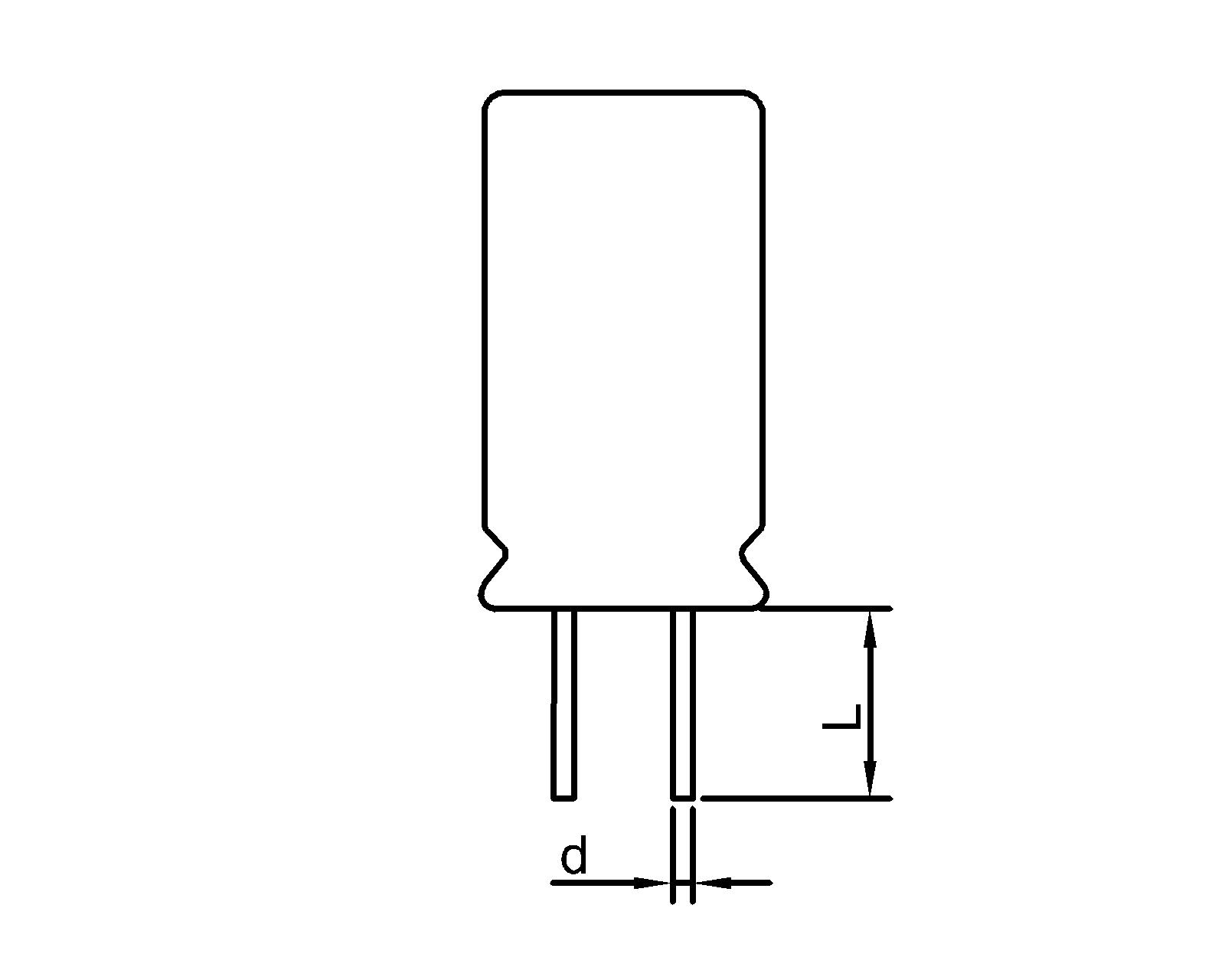

Unit: mm / Custom tooling available Dimension & Bending Schematic AR-110
Callouts match specifications in the table (Click image to enlarge)

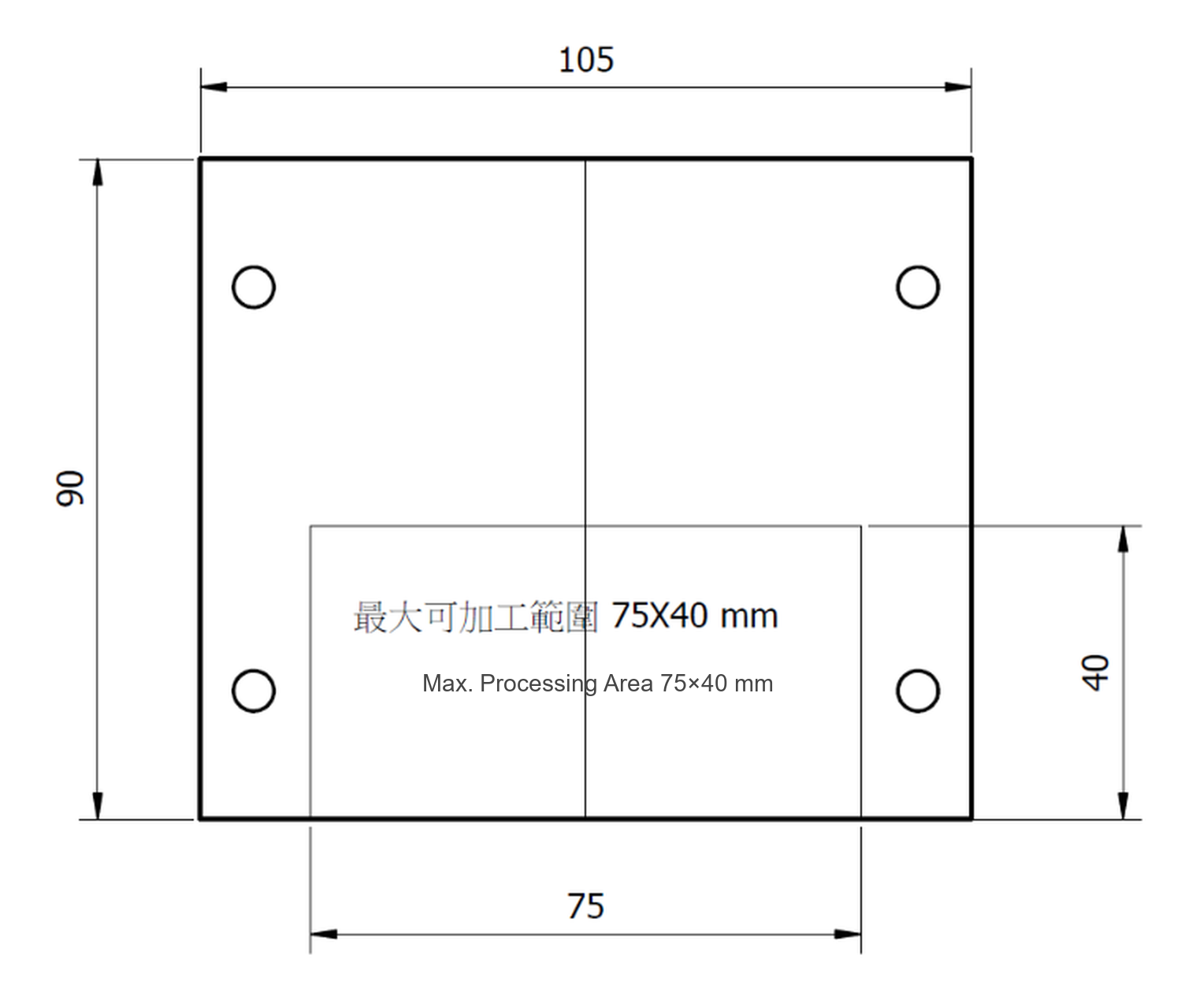

Max. Processing Area Schematic (Tooling Plate)
75 × 40 mm
Tooling aperture working area: 75×40 mm (Base plate: 105×90 mm)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| L | Cut Lead Length (L) | 2.0 ~ 8.0 mm | Customized according to the thickness of the aperture cutting plate |
| D | Lead Wire Diameter (d) | Ø0.4 ~ Ø1.2 mm | Precision tungsten carbide shearing module |
| AREA | Max. Processing Area (W×H) | 75 × 40 mm | Aperture plate effective working area; base plate dimensions 105 × 90 mm |
