CF-120
Ren Thang Machine
CF-120
Auto Taped Radial Lead Forming Machine (Single Die Set)
帶裝立式零件成型機 (單組模具型)
The CF-120 is equipped with a dedicated single-stage forming die and precision rotary cutters, processing up to 7,200 taped radial components per hour into 90° bends, SMD gull-wing forms, or standoff kinks. Featuring dual form-and-cut or cut-only modes, it delivers continuous variable-speed automation.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity Max. 7,200 pcs / Hour
Power / Air Supply 電壓: 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 450(L) x 450(W) x 500(H) mm
Net Weight 淨重: 24 kgs
Catalog Page & Status
P.4 (Catalog_0004) • 配備一組單成型模具與切刀；標準紙帶孔距 A=12.7mm。
【Key Machine Features & Advantages】
- Single-Stage Form & Trim Tooling: Supplied complete with one dedicated forming die set and precision rotary cutters, achieving up to 7,200 pcs/hour.
- Common Forming Profiles: Rapidly performs 90-degree right-angle bends, SMD surface-mount gull-wing forms, and front/back standoff kinks.
- Standard Radial Tape Feed: Compatible with standard taped radial through-hole components with 12.7 mm sprocket hole pitch.
- Dual-Mode Flexibility: Selectable operation modes allow combined lead forming and trimming, or cut-only processing without bending.
- Variable Speed Automatic Infeed: Stepless electronic speed adjustment ensures smooth, synchronized continuous tape feeding.
- Custom Tooling Available: Custom die profiles engineered to customer component drawings; submit specifications for tailored tooling solutions.
【Revision Notes】 成型尺寸規格依客戶圖面客製專用模具。
Lead Forming & Geometric Parameter Specifications

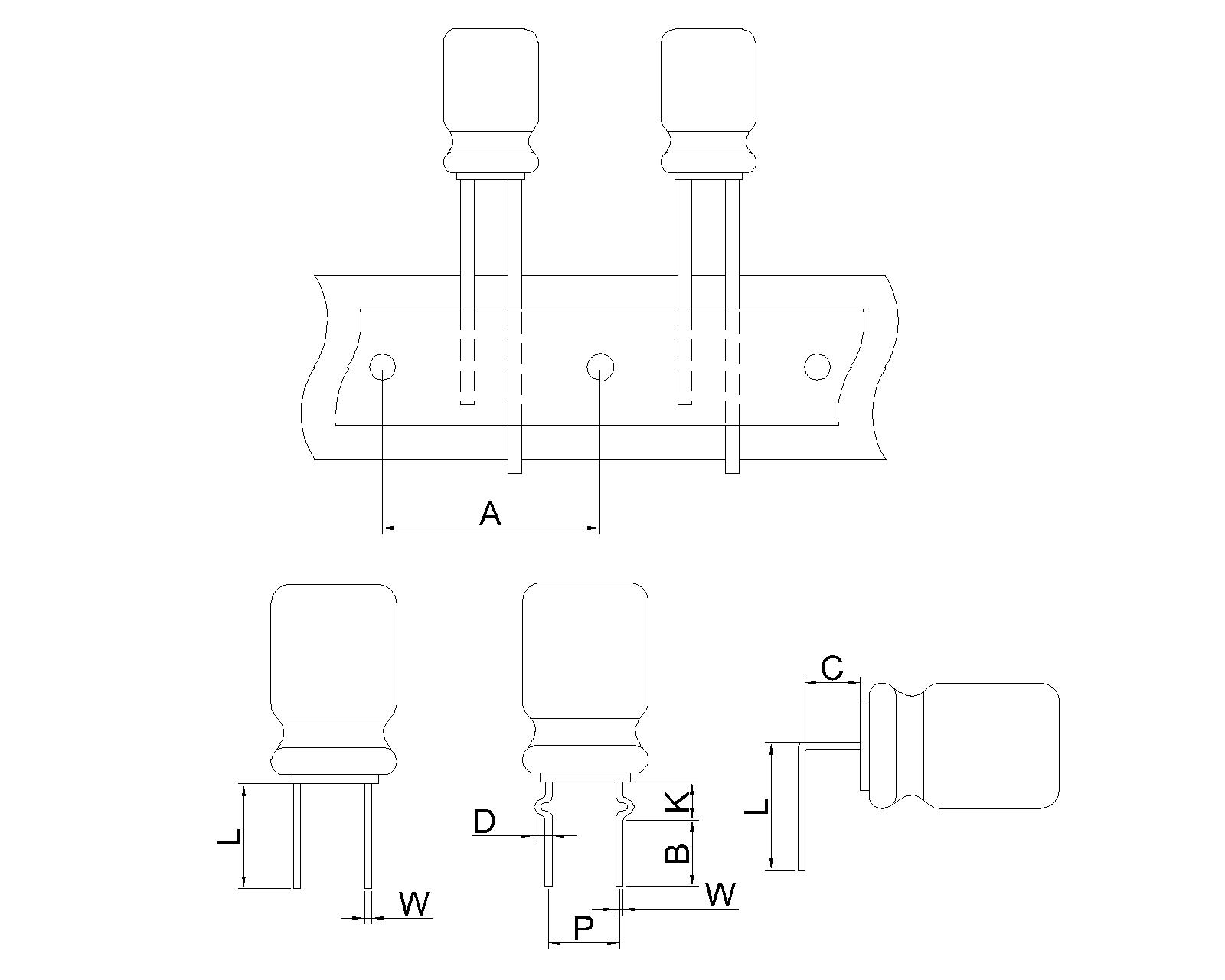

Unit: mm / Custom tooling available Dimension & Bending Schematic CF-120
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A | Tape Hole Pitch (A) | 標準 A=12.7mm (CF-120) / 特殊 A=15mm (CF-120S) | Applicable to standard tape-mounted parts |
| K | Kink to Body Height (K) | >3mm | PCB to Body Height |
| B | Lead Length after Bend (B) | 可調 | Final length |
| W | Lead Wire Diameter (W) | Ø0.4 ~ Ø1.0 mm | Compatible lead wire diameter |
| P | Lead Pitch (P) | 標準 5.0 / 7.5 / 10.0 mm | lead pitch for insertion into PCB mounting holes |
| D | Kink Depth (D) | 常見2mm (Standard 2mm) | Custom tooling available for varying inward/outward kink depths |
| L | Total Lead Length (L) | 常見 10.0 ~ 25.0 mm | Total lead length from component base to lead tips |
| C | 90° Bending Height (H) | >2mm | Vertical height from component base to 90° bend point; fixed by tooling specification |
| L | Lead Length after Bend (L) | 可調 3.0 ~ 15.0 mm | horizontal lead length after 90° bend; determined by cutter tooling die |
