KA-680
Ren Thang Machine
The KA-680 is a fully automatic in-line PCB underside copper brush cleaning system featuring variable-speed motorized conveyor rollers. Installed directly downstream of lead cutters or wave soldering ovens, it cleans board bottoms continuously without manual intervention.
Processing & Feature Tags
Carbide Disc Grinding
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 每片約 20 分鐘 (20 min/pc)
Power / Air Supply 220V 50/60HZ (主軸 3,000 RPM)
Standard Tolerance 研磨角度 17° - 22° 可調 (常用 18°)
Dimensions (L×W×H) 800(L) × 750(W) × 1200(H) mm
Net Weight 135 kg
Catalog Page & Status
P.16 (Catalog_0016) • 在產 (Active)
【Key Machine Features & Advantages】
- Precision blade re-sharpening machine engineered for tungsten carbide circular blades, supporting both dry and wet grinding modes.
- Eliminates production downtime from outsourcing sharpening, saving turnaround time and extending blade life.
- Adjustable cutting bevel angle from 17° to 22° (standard preset angle is 18°).
- High-precision spindle operating at 3,000 RPM, equipped with a diamond grinding wheel (125D-6W-2X-35T-14E-31.75H).
- Fast grinding cycle: takes only approx. 20 minutes per blade; recommended sharpening every 1~2 days under standard 8-hr/day production.
- Closed-loop coolant system: features an internal recirculation tank and splash enclosure to preserve wheel life and maintain a clean shop floor.
- Five core modules: heavy-duty main frame, electric control system, coolant system, precision grinding assembly, and micro-feed mechanism.
【Revision Notes】 鑽石砂輪 125D-6W-2X-35T-14E-31.75H；五大機構操作與保養簡易。
Lead Forming & Geometric Parameter Specifications

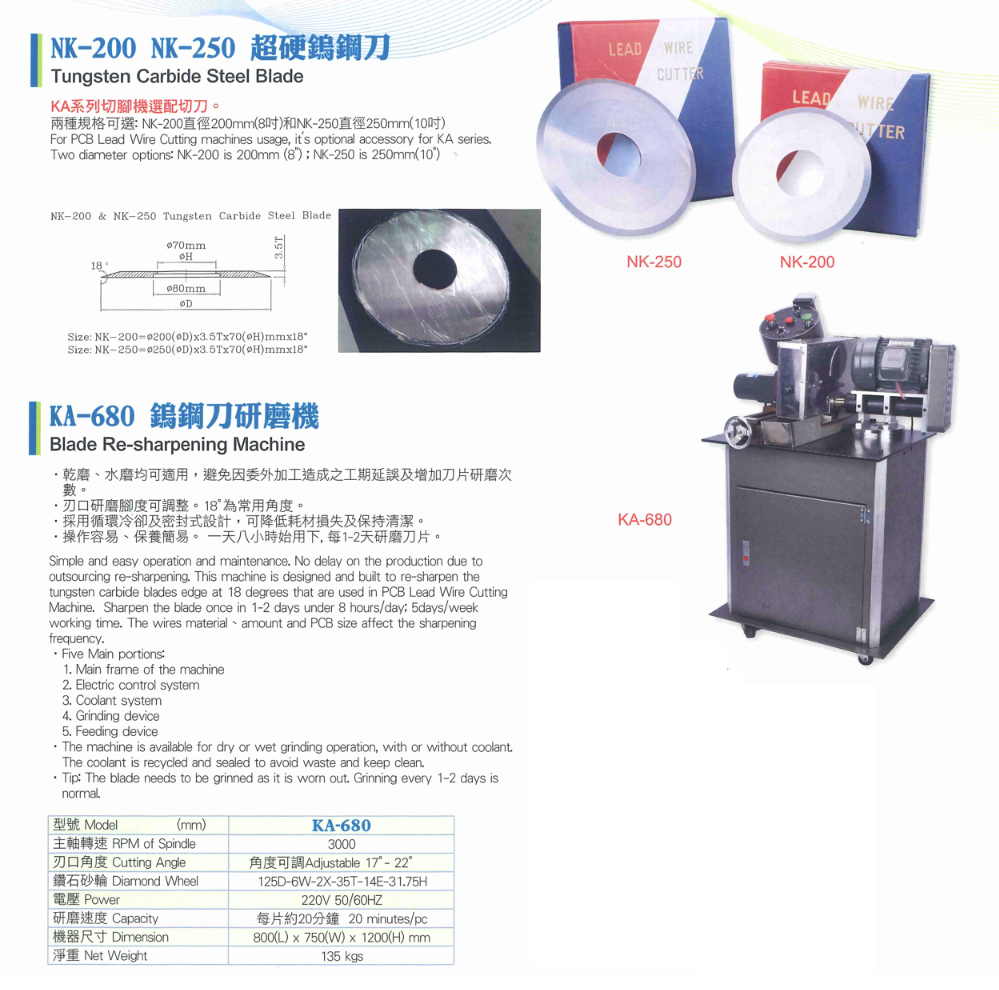

Unit: mm / Custom tooling available Dimension & Bending Schematic KA-680
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| SPINDLE_RPM | Spindle RPM | 3,000 RPM | 220V 50/60Hz high-precision grinding drive |
| CUT_ANGLE | Cutting Angle Range | 17° ~ 22° 可調 (常用 18°) | Angle precision fine-tuning scale indication |
| WHEEL_SPEC | Diamond Grinding Wheel | 125D-6W-2X-35T-14E-31.75H | Original factory standard high-quality diamond grinding wheel |
| GRIND_SPEED | Grinding Speed | 每片約 20 分鐘 (20 min/pc) | Just regrind every 1 to 2 days under 8 hours/day operation |
| COOLANT_SYS | Coolant System | 循環水冷式密封設計 | Reduce grinding wheel consumption and keep the factory clean and dust-free |
| MAIN_SYSTEMS | Five Core Modules | 機身本體 / 電控系統 / 循環水冷 / 研磨裝置 / 進刀機構 | Solid structure, easy operation and simple maintenance |
