KA-83
Ren Thang Machine
The KA-83 is an extra-large manual-feed PCB lead trimmer specifically built for oversized circuit boards up to 600 × 400 mm. Equipped with a heavy-duty 1 HP high-torque spindle motor, it effortlessly cuts through dense multi-layer boards and heavy component leads with superior rigidity.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 主軸 600 RPM
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance 最大 PC 板 400 × 270 mm
Dimensions (L×W×H) 500(L) × 500(W) × 700(H) mm
Net Weight 50 kg
Catalog Page & Status
P.17 (Catalog_0017) • 在產 (Active)
【Key Machine Features & Advantages】
- Ergonomic hand-held brushing operation: hold PCB firmly against the spinning circular brush to rapidly strip away solder balls and flux residue.
- Specialized anti-static structure ensures rarely generating static electricity, eliminating ESD risks to sensitive electronic components.
- Gentle yet efficient brushing action completely protects PCB copper traces, solder joints, and protective coatings.
- Equipped standard with natural palm fiber brush (Palm Fiber Brush); optional heavy-duty brass/copper brush available for stubborn dross.
- Constant-speed high-torque spindle operating at 600 RPM paired with a large ψ 250 mm diameter disc brush for wide cleaning coverage.
- Generous working envelope accommodating maximum PCB dimensions up to 400 mm(L) × 270 mm(W).
- Rigid floor-standing machine chassis measuring 500(L) × 500(W) × 700(H) mm with 50 kg net weight for stable, vibration-free operation.
【Revision Notes】 毛刷尺寸 ψ250mm，主軸轉速 600 RPM。最大 PCB 尺寸 400×270mm。
Lead Forming & Geometric Parameter Specifications

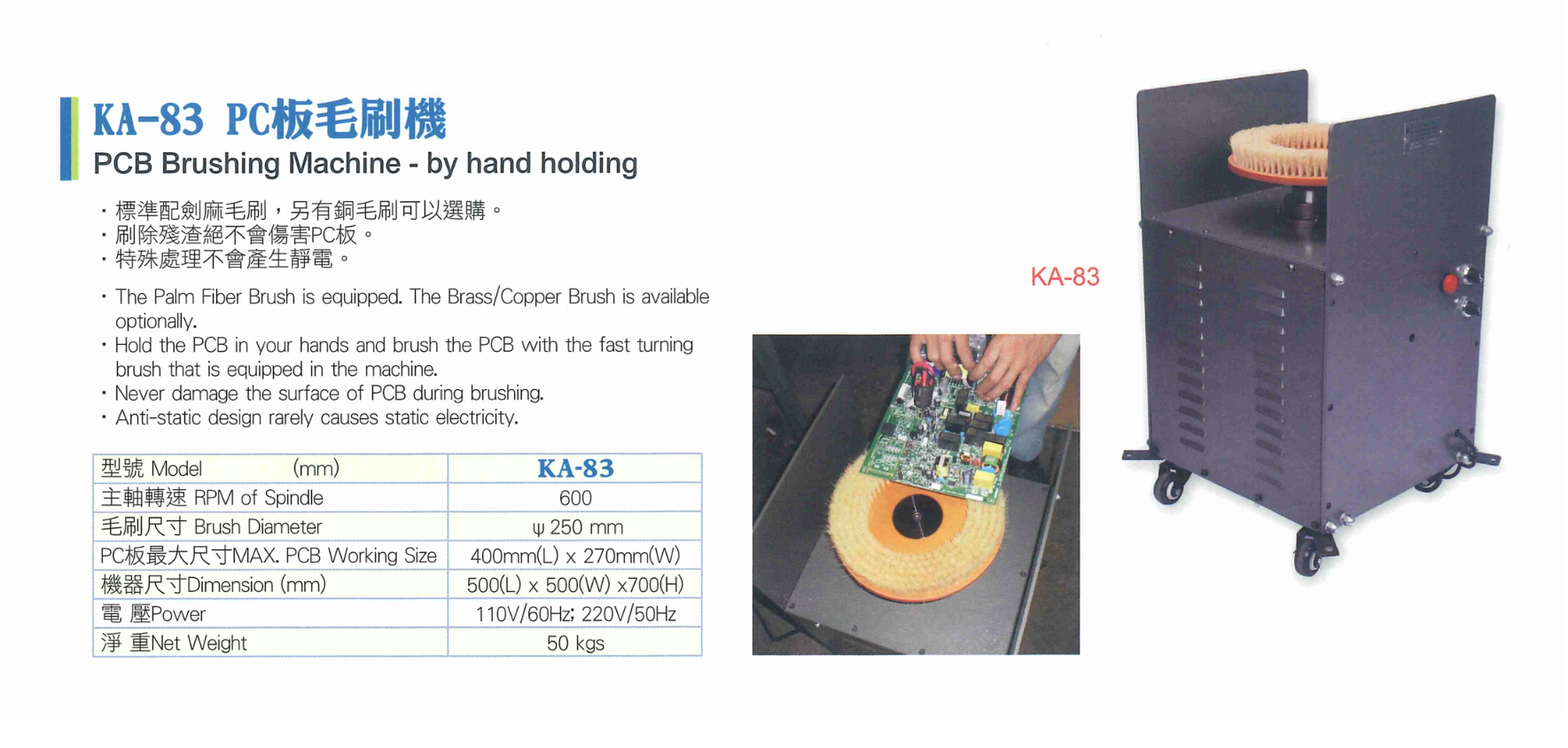

Unit: mm / Custom tooling available Dimension & Bending Schematic KA-83
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| SPINDLE_RPM | Spindle RPM | 600 RPM | Fixed-speed high-torque spindle running smoothly |
| BRUSH_DIA | Brush Diameter | ψ 250 mm | Large round working brush plate, wide coverage |
| PCB_MAX | Max. PCB Dimensions | 400(L) × 270(W) mm | Handheld flat brush to remove residue and tin beads |
| BRUSH_MATERIAL | Brush Material Options | 標配刺麻毛刷 (Palm Fiber Brush)；另可選購精密銅毛刷 | Wear-resistant and anti-static, the copper brush is suitable for powerful slag removal |
| ANTI_STATIC | Anti-Static Feature | 特殊抗靜電防護設計，作業絕不產生靜電 | Completely protects electrostatically sensitive electronic components (ESD Safe) |
| WORK_MODE | Operation Method | 手持基板刷除殘渣絕不傷害 PC 板 | Flexible and fast, suitable for repair stations and quality control inspections |
