KA-8
Ren Thang Machine
The KA-8 is an economical manual-feed PCB lead cutter designed for lead trimming after wave soldering, driven by a 1/2 HP 4,500 RPM spindle motor. Cutting leads down to 1.0 mm height for boards up to 400 × 270 mm, its interlocked safety shield ensures safe and reliable batch trimming.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 手推速度操作 (約 300 ~ 600 片/小時)
Power / Air Supply 110V/60Hz ; 220V/50Hz (1/2 HP, 4,500 RPM)
Standard Tolerance 最低腳高 1.0mm (不建議<0.8mm)
Dimensions (L×W×H) 1050(L) × 570(W) × 750(H) mm
Net Weight 73 kg

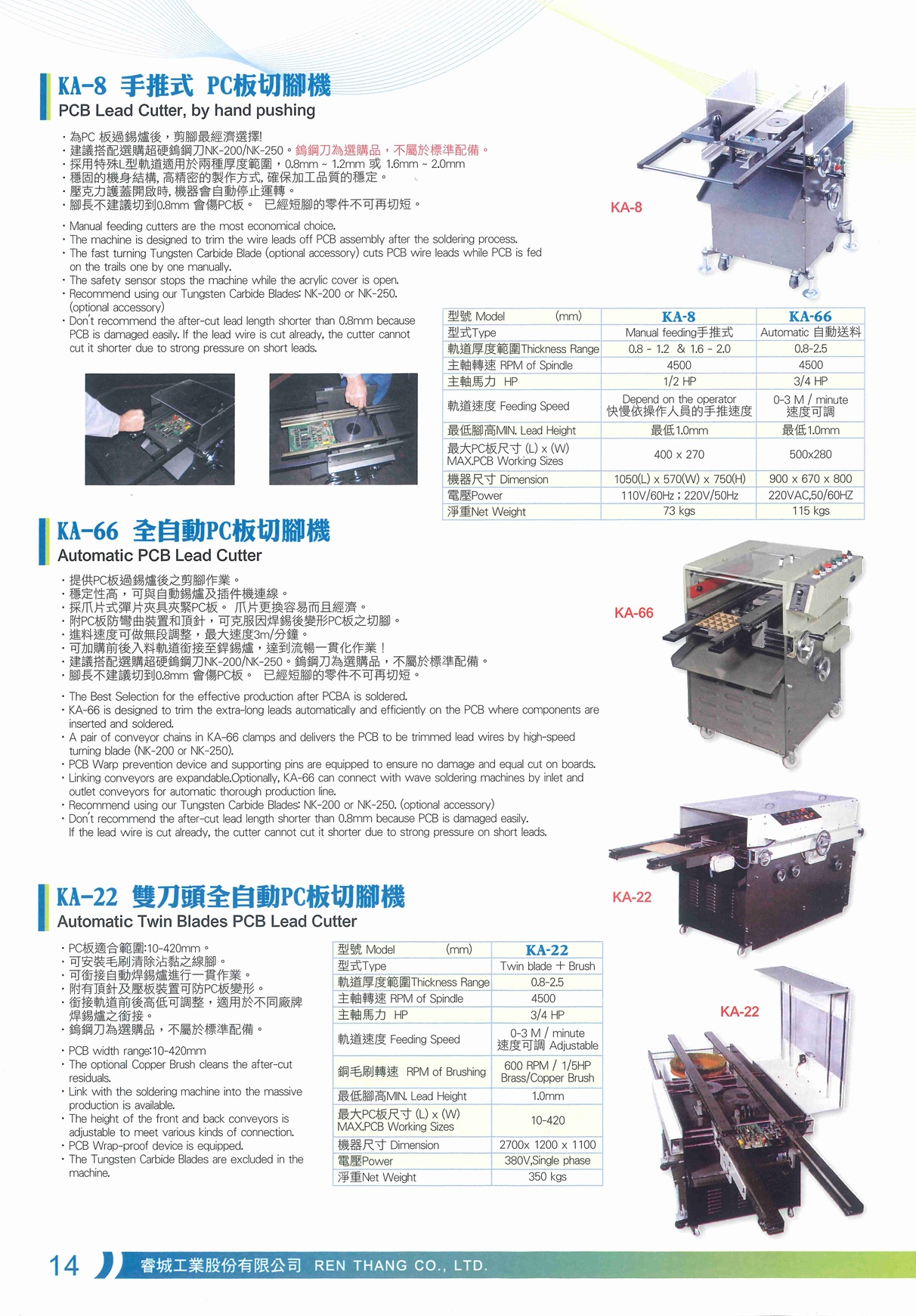

Catalog Page & Status
P.14 (Catalog_0014) • 在產 (Active)
【Key Machine Features & Advantages】
- The most economical choice for lead trimming after wave soldering, ideal for low-to-medium batch and prototyping runs.
- Features specialized L-type guide rails accommodating dual PCB thickness ranges: 0.8 ~ 1.2 mm and 1.6 ~ 2.0 mm.
- Powerful 1/2 HP spindle motor spinning at 4,500 RPM delivers clean, vibration-free cuts down to a min. lead height of 1.0 mm.
- Accommodates maximum PCB dimensions up to 400 × 270 mm with operator-regulated manual feed pace.
- Equipped with an interlocked acrylic safety shield that immediately shuts down the machine upon opening for operator protection.
- Solid, precision-machined heavy-duty structure (73 kg) minimizes cutting vibration and ensures uniform trimming quality.
- Recommended for use with premium NK-200 / NK-250 micro-grain tungsten carbide blades (optional accessory).
- Operating note: Cutting height below 0.8 mm is not recommended to avoid PCB damage; previously trimmed leads should not be re-cut.
【Revision Notes】 建議搭配選購超硬鎢鋼刀 NK-200/NK-250 (選購品)；切腳高度不建議切至0.8mm以防傷板。
Lead Forming & Geometric Parameter Specifications
Unit: mm / Custom tooling available Dimension & Bending Schematic KA-8
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| THICK_RANGE | Rail Thickness Range | 0.8 ~ 1.2 mm & 1.6 ~ 2.0 mm | Special L-shaped double-thickness track |
| PCB_MAX | Max. PCB Dimensions | 400 × 270 mm | Hand-pushed feeding speed is adjusted by the operator |
| SPINDLE_RPM | Spindle Spec | 1/2 HP / 4,500 RPM | High-speed rotation and smooth cutting |
| MIN_LEAD_H | Min. Lead Height | 最低 1.0 mm (不建議 < 0.8mm) | Prevents scratches on the PCB substrate |
| SAFETY_SYS | Safety Interlock System | 透明壓克力護蓋開關連鎖感應 | When the protective cover is opened, the power will be automatically cut off immediately and the operation will stop |
| BLADE_OPT | Recommended Tungsten Blades | NK-200 / NK-250 (選購配件) | Ultra-fine grain super-hard tungsten carbide round blade |
