KA-82
Ren Thang Machine
KA-82
Desktop Roller Brushing Machine (incl. KA-82W)
滾筒式毛刷機 (含 KA-82W 加寬型)
The KA-82 is an expanded manual-feed PCB lead cutter featuring an enlarged precision ground worktable accommodating circuit boards up to 500 × 330 mm. Driven by a vibration-free 3/4 HP 4,500 RPM spindle motor, it provides clean, burr-free trimming down to 1.0 mm lead height for large assemblies.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 主軸 0 ~ 500 RPM (連續可調)
Power / Air Supply 110V/60Hz ; 220V/50-60Hz
Standard Tolerance 毛刷 ψ40×ψ80×250mm (KA-82W: ψ40×ψ80×400mm)
Dimensions (L×W×H) 320(L) × 320(W) × 140(H) mm (KA-82W: 470×320×140mm)
Net Weight 13 kg (KA-82W: 15 kg)
Catalog Page & Status
P.17 (Catalog_0017) • 在產 (Active)
【Key Machine Features & Advantages】
- Roller brush automatically dips into cleanser, thoroughly cleaning and polishing the PCB surface.
- Soft roller brush mechanism guarantees zero scratching on delicate PCB traces and solder resist masks during cleaning.
- Triple-axis adjustment: brushing speed, working height, and cleaning angle are all independently adjustable.
- Spindle speed continuously adjustable from 0 to 500 RPM to adapt to various flux residues and cleaning tasks.
- Available in two standard configurations:
- • Standard KA-82: Roller brush size ψ 40 × ψ 80 × 250(L) mm, tank capacity 2.1 Liters, net weight 13 kg.
- • Wide KA-82W: Roller brush size ψ 40 × ψ 80 × 400(L) mm, tank capacity 3.2 Liters, net weight 15 kg.
- Compact benchtop footprint with dual-voltage support (110V/60Hz; 220V/50-60Hz), ideal for high-mix low-volume PCB post-soldering touch-ups.
【Revision Notes】 KA-82 溶劑槽 2.1L，淨重 13kg；KA-82W 溶劑槽 3.2L，淨重 15kg。主軸轉速 0~500 RPM 可調。
Lead Forming & Geometric Parameter Specifications

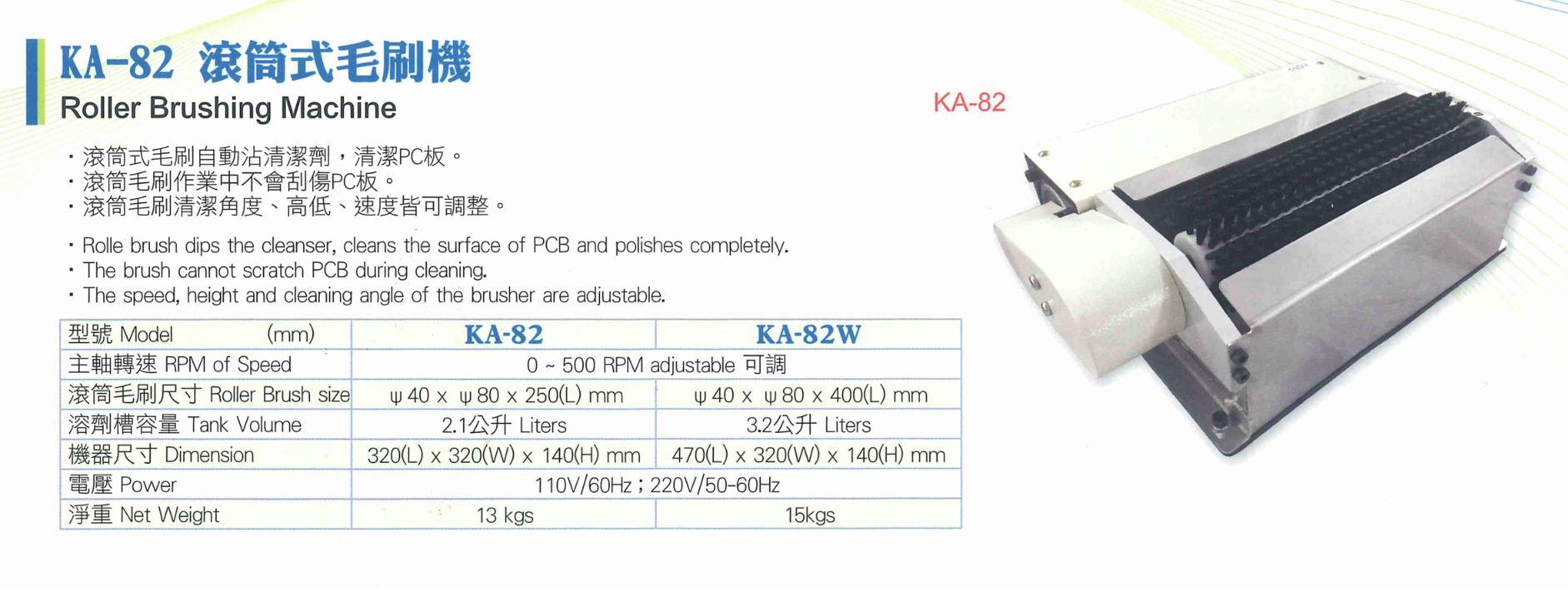

Unit: mm / Custom tooling available Dimension & Bending Schematic KA-82
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| SPINDLE_RPM | Spindle Speed Range | 0 ~ 500 RPM (連續可調 / Adjustable) | Stepless speed knob to accurately control the cleaning force |
| BRUSH_SIZE_STD | Roller Brush Dimensions (KA-82) | ψ 40 × ψ 80 × 250(L) mm | Standard roller brush specifications |
| BRUSH_SIZE_WIDE | Roller Brush Dimensions (KA-82W) | ψ 40 × ψ 80 × 400(L) mm | Widened roller brush specifications, corresponding to ultra-wide substrates |
| TANK_VOL_STD | Solvent Tank Volume (KA-82) | 2.1 公升 (Liters) | Standard solvent holding capacity |
| TANK_VOL_WIDE | Solvent Tank Volume (KA-82W) | 3.2 公升 (Liters) | Widened solvent holding capacity |
| ADJUST_ABILITY | Adjustable Features | 清潔角度、高低行程、轉速皆可連續調整 | Fine-tuning the best contact surface according to different thicknesses and component heights |
| ANTI_SCRATCH | PCB Surface Protection | 柔性毛刷滾輪作業，徹底清潔拋光絕不刮傷基板與綠漆 | Protecting sensitive electronic circuits and solder joints |
